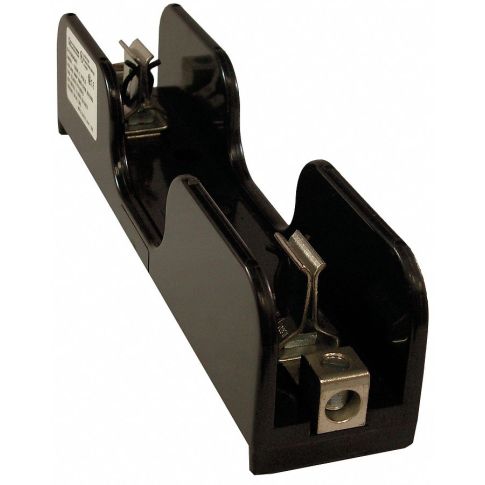

Fuse Block 61 to 100A K5/H 1 Pole MPN:61006
Fuse Block 61 to 100A K5/H 1 Pole
The fuse block from established manufacturer serves as a vital protective measure for equipment from overheating caused by faulty wiring, circuits or component failure. Its compact size combined with the range of current amperage settings making it an ideal fit for all electrical applications within industries such automotive, marine and aerospace, to name just a few, protecting intricate systems and machinery from irreversible damage resulting in high costs of replacement while adhering to regulated safety protocols, ensuring reliability during high-demand processes which are critical for maintaining productivity.
These fuse blocks are compatible with UL Class H and K fuses that commonly provide overcurrent protection in older HVAC installations. They're used with Class H fuses for a noncurrent-limiting system with small interrupting ratings or Class K fuses for a current-limiting system with high interrupting ratings. Fuse blocks with spring-reinforced clips hold fuses tightly in place to maintain full electrical contact.UL Class and midget fuse blocks accept fuses sized and rated according to UL Class or midget specifications. They have an open top for access to fuses, clips or studs for securing fuses within the block, and terminals for connecting to the circuit. These fuse blocks are either bolted down or mounted on a DIN rail to hold them in place. They're commonly paired with fuse box covers to enclose the fuses and prevent accidental contact. They are nonindicating, so there's no visual signal when a fuse is blown.
Technical Specifications
- Item Fuse Block
- Fits Fuse Type Industrial
- Fuse UL Class H, K5
- Amp Range 61 to 100 A
- Number of Poles 1
- Voltage Rating 600V AC/DC
- For Fuse Size 7-7/8 in L x 1-5/16 in dia
- Compatible Fuse Series NLS, NOS, OTS, RES, RFS, RLS
- Series 6HKRFB
- Visual Indication Nonindicating
- Fuse Block Style Nonrejection
- Fuse Block Design Open
- Wire Range 12 to 2/0 AWG
- Mounting Style Bolt-Down
- Body Material Glass Filled Polycarbonate
- Connector Type Box Lug (Cu)
- Height 2.48 in
- Width 2.1 in
- Length 10.08 in
- Spring Reinforced Clip Yes
- Standards CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: Mersen
- Condensed Mfg Number: 61006
- MPN: 61006
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536908085
- GDS Category Name: Fuse Blocks
- GDS Family Name: Fuses
- GDS Segment Name: Electrical
- UNSPSC: 39121411
- UNSPSC Class ID: 14
- UNSPSC Commodity Name: Lugs connectors and terminals
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Fuse blocks
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 8:46am UTC
Category: Fuses
