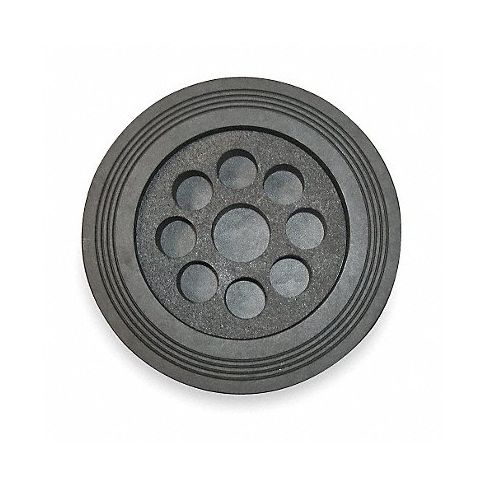

Rupture Disc Graphite 4 In 25 PSIG MPN:S3-04-25
Rupture Disc Graphite 4 In 25 PSIG
The Mersen Rupture Disc is an essential component for safeguarding pressure equipment in various industrial applications. Made from resin-impregnated graphite material, these single-use discs offer high resistance to corrosion and withstand harsh chemicals and corrosive compounds. Their wide temperature range of -20F to 300F allows them to be used in diverse industries. Easy to install between two ANSI flanges, they have a burst pressure of 25 psi and cycle to 75% within +/-5%, preventing failures due to fatigue. Ideal for chemical, pharmaceutical, and other industries dealing with high-pressure equipment, the Mersen Rupture Disc ensures reliable operation and safety.
Top product features:
- Made from resin-impregnated graphite material that offers high resistance to corrosion and can withstand harsh chemicals and corrosive compounds.
- Wide temperature range of -20F to 300F for versatile use in diverse industries.
- Easy installation between two ANSI flanges without any disruption to the ducting.
Top product applications:
- Chemical processing industry for handling corrosive liquids and vapors.
- Pharmaceutical industry as part of pressure equipment safety systems.
- Manufacturing processes requiring precise pressure control in hazardous environments.
Rupture Discs • Temp. range: -20° to 300°F Width: 7/8" Vacuum to 29.9" HgInstall between two 150-lb. ANSI flanges. Single-use discs cycle to 75% of rated burst pressure within ±5%; won't fail due to pressure fatigue. Resin-impregnated graphite material resists most corrosive liquids and vapors; inert to most acids and corrosive compounds. Especially suited for use with pressurized equipment in chemical and pharmaceutical industry applications.
Technical Specifications
- Item Rupture Disc
- Burst Pressure 25 psig
- Fits Pipe Size 4 in
- Diameter 6 3/4 in
- Thickness 7/8 in
- Body Material Graphite
- Vacuum Pressure 29.9 in Hg
- Temp. Range -20 Degrees to 300 Degrees F
Manufacturer Details
- Manufacturer: Mersen
- Condensed Mfg Number: S30425
- MPN: S3-04-25
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Rupture Discs
- GDS Family Name: Pressure and Temperature Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40142323
- UNSPSC Class ID: 23
- UNSPSC Commodity Name: Pipe fittings
- UNSPSC Commodity ID: 23
- UNSPSC Commodity Name: Rupture disk
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
