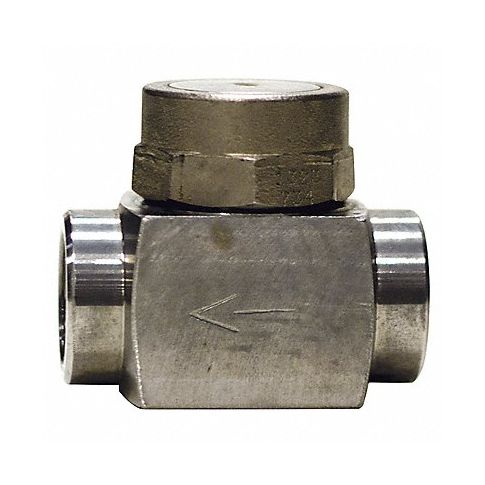

Steam Trap 3/4 NPT Outlet SS Disc MPN:MDS-66
A steam trap is a device designed to discharge or reduce the quantity of steam trapped in a system. This steam trap model features a 3/4 NPT outlet with an SS disc. It benefits many industries where steam piping systems are used, including pharmaceuticals, hospitals, breweries, universities and manufacturing plants. This model effectively removes condensate from the steam system, preventing damage to equipment and protecting it from corrosion, noise, scale and chemical contamination. It can be installed vertically or horizontally making it useful in various positions within the HVAC system of buildings. The all steel body ensures durability against wear and tear and prevents the formation of rust, enhancing its long life performance and reducing maintenance needs for clients.
Technical Specifications
- Item Steam Trap
- (F)NPT Connections 3/4 in
- Max. Operating PSI 600 psi
- End to End Length 2 13/16 in
- Condensate Capacity Lbs/Hr 1,830
- Max. Temp. 800 Degrees F
- Type Disc
- Downstream PSI Range 0 to 595 psi
- Body Material Stainless Steel
- NPT Inlet 3/4 in
- NPT Outlet 3/4 in
- NPT Port 3/4 in
- Disc Material Stainless Steel
- Pipe Configuration Straight
- Trap Position Horizontal
- Pressure Air Vent Releases Air and Non-Condensable Gases That Adversely Affect The Heat Transfer of A Steam System
- Application Steam
- Includes Strainers
Manufacturer Details
- Manufacturer: Mepco
- Condensed Mfg Number: MDS66
- MPN: MDS-66
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Steam Traps
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40142503
- UNSPSC Class ID: 25
- UNSPSC Commodity Name: Traps and strainers
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Steam traps
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
