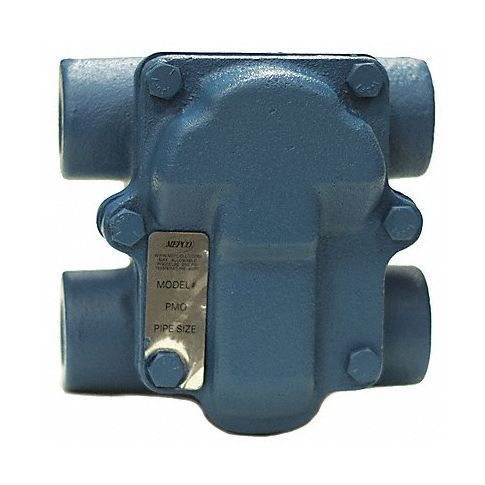

Steam Trap 3/4 NPT Outlet SS Disc MPN:44-4125N
Steam Trap 3/4 NPT Outlet Stainless Steel Disc is a compact, automatic valve used to regulate steam flow for maintaining pressure balance within heating and air-conditioning systems, while also removing condensate. Its stainless steel construction ensures durability in high temperature environments while resisting corrosion and wear-and-tear over time. The 3/4 NPT male thread allows for easy installation to pipes with standard thread sizes. By sensing changes in steam pressure, this trap activates to expel condensate without requiring any external power or manual control. This ensures the prevention of flooding and damage to equipment, preserving their efficiency over time. The trap can be used in various applications such as HVAC systems, hot water heating, steam boilers and commercial refrigeration. Its cost-effective functionality makes it a popular choice for both residential and industrial use to regulate and control the flow of steam, ensuring optimal performance and longevity.
Technical Specifications
- Item Steam Trap
- (F)NPT Connections 1 in
- Max. Operating PSI 125 psi
- End to End Length 4 7/8 in
- Condensate Capacity Lbs/Hr 1,650
- Max. Temp. 450 Degrees F
- Type Float and Thermostatic
- Downstream PSI Range 0 to 120 psi
- Body Material Cast Iron
- NPT Inlet 3/4 in
- NPT Outlet 3/4 in
- NPT Port 3/4 in
- Disc Material Stainless Steel
- Pipe Configuration (2) Pipe, (1) Inlet and (1) Outlet
- Trap Position Horizontal
- Pressure Air Vent Releases Air and Non-Condensable Gases That Adversely Affect The Heat Transfer of A Steam System
- Application Steam
Manufacturer Details
- Manufacturer: Mepco
- Condensed Mfg Number: 444125N
- MPN: 44-4125N
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Steam Traps
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40142503
- UNSPSC Class ID: 25
- UNSPSC Commodity Name: Traps and strainers
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Steam traps
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 25, 2024 1:50pm UTC Category: HVAC Controls and Thermostats
