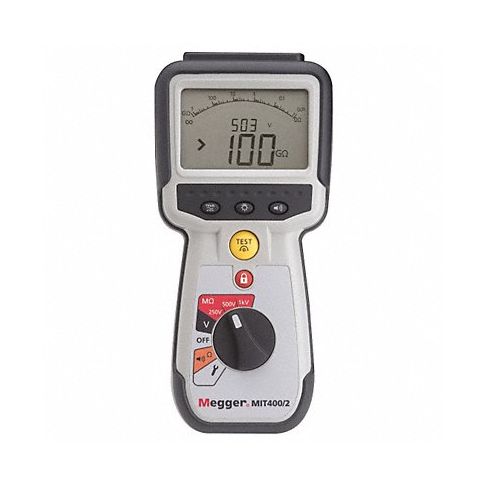

Megohmmeter 50 to 1000V DC Backlit LCD MPN:MIT420/2

The Megger® MIT420/2 CAT IV insulation tester is designed for fast results and operator safety in a wide range of applications, including electrical installation, cable and motor testing, automotive, ESD, panel building, avionics, and maintenance. It offers a high insulation range and digital/analog arc display, plus DC/AC true RMS voltage testing with stabilized test voltage for fast, accurate measurements. The MIT420/2 also features diagnostic polarization index and dielectric absorption ratio tests, with variable test voltage, and stores more than 1000 test results to download via Bluetooth® for analysis and record-keeping .Live circuit detection and protection. Fast continuity testing includes autoranging 0.01O to 1.0MO, in addition to 200mA and 20mA test options. Enhanced feedback-controlled test voltages limit over-voltage to 2%, vs. the 10% to 20% industry standard.

Technical Specifications

• Item Battery Operated Megohmmeter
• Output Test Voltage 50/100/250/500/1000V DC
• Insulation Resistance Range 0 to 200 gigohm
• Live Circuit Detection Yes
• Resistance Range 0.1 to 999.9 ohm
• Capacitance Range 0.1 nF to 10 uF
• Display Backlit LCD
• Accuracy +/-2% + 2 Digits
• Auto Power Off Yes
• Safety Rating CAT IV 600V
• Leakage Current Range Yes
• Data Logging 1000 Data Points
• Auto Ranging Yes
• Features Variable Test Voltage and Pass/Fail Indicator
• Power Source (6) AA Batteries
• Includes Certificate of Calibration
• Manufacturers Warranty Length 3 yr

Manufacturer Details

• Manufacturer: Megger
• Condensed Mfg Number: MIT4202
• MPN: MIT420/2

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: GB
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9030333400
• GDS Category Name: Megohmmeters and Insulation-Testing Multimeters
• GDS Family Name: Electrical Power Testing
• GDS Segment Name: Test Instruments
• UNSPSC: 41113628
• UNSPSC Class ID: 36
• UNSPSC Commodity Name: Electrical measuring and testing equipment
• UNSPSC Commodity ID: 28
• UNSPSC Commodity Name: Megohmmeters
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
