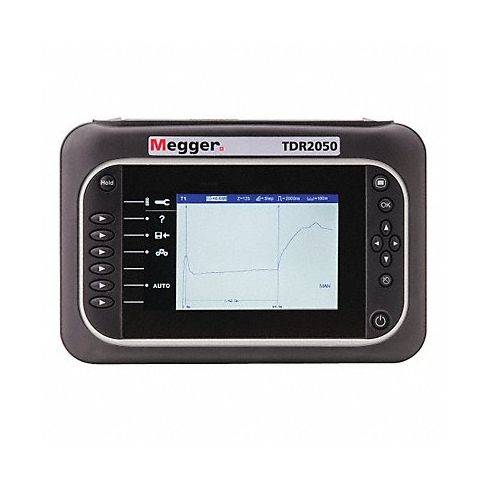

Time Domain Reflectometer 20 000m Range MPN:TDR2050
Introducing Megger's Time Domain Reflectometer (TDR2050), the ideal solution for accurate cable fault location in electrical installations, telecommunications networks, and power transmission lines. With a measurement range of up to 20,000 meters, this versatile TDR can locate and identify faults such as discontinuities, reflections, and short circuits with ease. The device is lightweight and portable for on-site testing, making it suitable for both indoor and outdoor applications. Its Electrical Output Amplitude ensures precise results while the +/-1% accuracy guarantees reliable and consistent measurements. With its wide range of applications, the TDR2050 is a must-have tool for electricians, engineers, and technicians involved in fault detection and location.
Top product features:
- Measurement Range (M): 20,000
- Accuracy (%): +/-1
- Electrical Output Amplitude
Top product applications:
- Cable fault location in electrical installations
- Fault detection and location in telecommunications networks
- Power transmission line testing and analysis
Technical Specifications
- Item Time Domain Reflectometer
- Measurement Range 20,000
- Measurement Range (M) 20,000
- Accuracy (%) +/-1
- Resolution 1% of Range
- Output Amplitude 20 V
- Pulse Duration 2 nS
- Impedance 25, 50, 75, 100, 125 and 140 ohm
- Velocity Factor 0.2 to 0.99
- Display LCD
- Enclosure Rating IP54
- Auto Shutoff Yes
- Powered By Lithium-ion Battery
- Special Features Accents Color Schemes Outdoor, Cable Impedance, Custom Step TDR, DDG, Trace Tagging with (32) Upper Case Letters Characters Chosen, TX Null Automatic
- Includes Battery, Case, Leads
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Megger
- Condensed Mfg Number: TDR2050
- MPN: TDR2050
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: GB
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9030390100
- GDS Category Name: Time Domain Reflectometers
- GDS Family Name: Data and Communication
- GDS Segment Name: Electrical
- UNSPSC: 41115316
- UNSPSC Class ID: 53
- UNSPSC Commodity Name: Light and wave generating and measuring equipment
- UNSPSC Commodity ID: 16
- UNSPSC Commodity Name: Reflectometers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
