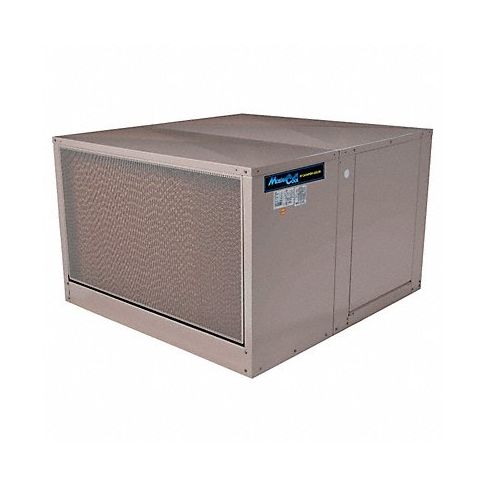

Ducted Evaporative Cooler 5024 cfm 1 HP MPN:AD1C71

Single-inlet residential ducted evaporative coolers hold thicker media than multiple-inlet coolers. This thick media increases contact time with the warm input air for more thorough evaporation. These coolers are used in new installations and as replacements for existing single-inlet coolers.

Technical Specifications

• Item Ducted Evaporative Cooler
• Duty Rating Residential Grade
• Air Flow 7000 cfm
• AA Residential Ducted Evaporative Coolers Down
• Average Coverage Area 2300 sq ft
• Drive Package With Motor Factory Installed
• Drive Type Belt
• Pad Thickness 8 in
• Number of Inlets for Outside Air Single Inlet
• HP 1 hp
• Amps 17.1
• Evaporative Cooler Voltage 115V AC
• Pump Voltage 115
• Phase - Voltage 1-Phase 115V AC
• Phase 1
• Number of Speeds 2
• Water Connection 1/4 in
• Water Capacity 5 gal
• Fill Type Water Connection Required
• Finish Powder Coated
• Color Cool Sand
• Discharge Down
• Duct Opening Length 19 3/4 in
• Duct Opening Width 19 3/4 in
• Height 34 5/8 in
• Width 42 in
• Depth 48 in
• Operating Weight 269 lb
• Includes Two Speed Motor with Pulley, Pump, Junction Box, Float, Bleed Off

Manufacturer Details

• Manufacturer: Mastercool
• Condensed Mfg Number: AD1C71
• MPN: AD1C71

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8479600000
• GDS Category Name: Ducted Evaporative Coolers
• GDS Family Name: Air Conditioners and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101703
• UNSPSC Class ID: 17
• UNSPSC Commodity Name: Cooling
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Evaporative coolers
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
