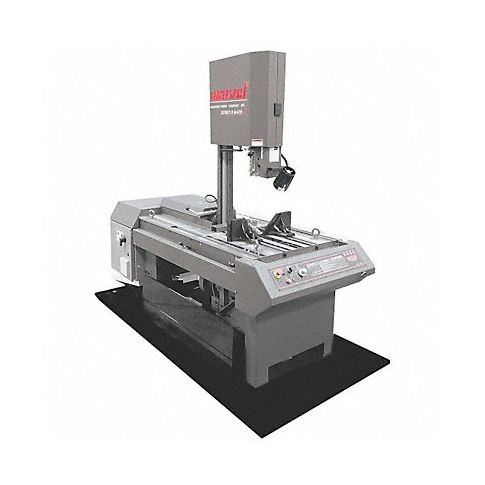

Band Saw Vertical 50 to 450 SFPM MPN:VT4555
Band Saw Vertical 50 to 450 SFPM
Introducing the Band Saw Vertical 50 to 450 SFPM from Marvel the perfect solution for your vertical metal-cutting needs! Our band saws are programmed by the operator to cut the material after clamping the workpiece in place, providing a secure and precise cutting experience. The head moves through the workpiece as it rests on a stationary table, making it easy to achieve accurate and consistent results. Whether you're working with thin or thick materials, our band saw has the power and flexibility to handle a wide range of applications. Save time and reduce waste with this reliable and efficient metal-cutting solution from Marvel.
Top product features:
- Vertical band saw type for precision cutting applications
- Semi-automatic operation for operator efficiency and control
- Stationary table for stable and accurate workpiece support
Top product applications:
- Metalworking and fabrication shops for cutting sheet metal and structural steel
- Machine shops for cutting various materials including tubing, pipe, and square stock
- HVAC ductwork installation for cutting ducting to size on-site
Semi-automatic vertical metal-cutting band saws are programmed by the operator to cut the material after the operator clamps the workpiece in place. The head moves through the workpiece as it rests on a stationary table.
Technical Specifications
- Item Band Saw
- Band Saw Type Vertical
- Band Saw Operation Semi-Automatic
- Voltage 460V AC
- Phase 3
- Rectangular Cutting Capacity - Horizontal 18 in x 22 in
- Throat Depth - Vertical 18 in
- Round Cutting Capacity - Horizontal 18 in
- SFPM Range 50 to 450
- Miter Angle Range 45 Degrees Left to 45 Degrees Right
- Number of Speed Settings Continuous
- Material Application Metal
- Blade Length 14 ft 6 in
- Max. Blade Width 1 1/4 in
- Min. Blade Width 1 in
- Cutting Capacity Square 18 in
- Power Source Cordless
- Blade Thickness 0.042 in
- Blade Wheels Dia. 18 in
- Amps AC 9.4
- Hz 60
- HP 5 hp
- Includes Blade
- Max. Blade Length 174 in
- Min. Blade Length 174 in
- Table Dimensions 33 in x 58 in
- Overall Depth 101 in
- Overall Height 89 in
- Overall Width 53 in
- Features Vertical Mitering
- Current 9.4
Manufacturer Details
- Manufacturer: Marvel
- Condensed Mfg Number: VT4555
- MPN: VT4555
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8461500090
- GDS Category Name: Stationary Band Saws
- GDS Family Name: Power Saws and Accessories
- GDS Segment Name: Power Tools
- UNSPSC: 27112709
- UNSPSC Class ID: 27
- UNSPSC Commodity Name: Power tools
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Power saws
- UNSPSC Family ID: 11
- UNSPSC Family Name: Hand tools
- UNSPSC Segment ID: 27
- UNSPSC Segment Name: Tools and General Machinery
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on August 28, 2023 8:15pm UTC
