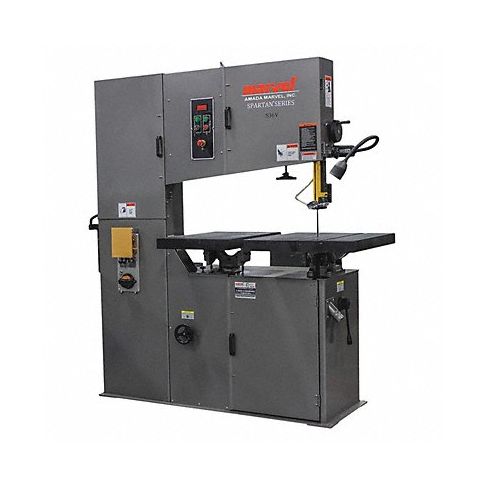

Band Saw Vertical 50 to 415 SFPM MPN:S-36V

Manually operated vertical metal-cutting band saws have a table that supports the workpiece while the operator pushes the workpiece through the blade to make the cut.

Technical Specifications

• Item Band Saw
• Band Saw Type Vertical
• Band Saw Operation Manual
• Voltage 230V AC
• Phase 3
• Rectangular Cutting Capacity - Horizontal 36 in x 12 in
• Throat Depth - Vertical 36 in
• Round Cutting Capacity - Horizontal 12 in
• SFPM Range 50 to 415
• Miter Angle Range 10 Degrees Left to 45 Degrees Right
• Number of Speed Settings 2
• Material Application Metal
• Blade Length 16 ft 5 in
• Max. Blade Width 1 in
• Min. Blade Width 1/8 in
• Cutting Capacity Square 12 in
• Power Source Corded
• Blade Thickness 0.035 in
• Blade Wheels Dia. 20 in
• Amps AC 11.8
• Hz 60
• HP 3 hp
• Max. Blade Length 197.75 in
• Min. Blade Length 197 3/4 in
• Table Dimensions 23-1/2 in x 27-1/2 in
• Overall Depth 43 in
• Overall Height 90 in
• Overall Width 38 in
• Features Built-In Blade Welder, Two Speed Transmission, Vertical Contour Saw with 3 hp Motor
• Current 11.8

Manufacturer Details

• Manufacturer: Marvel
• Condensed Mfg Number: S36V
• MPN: S-36V

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: TW
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8461500050
• GDS Category Name: Stationary Band Saws
• GDS Family Name: Power Saws and Accessories
• GDS Segment Name: Power Tools
• UNSPSC: 27112709
• UNSPSC Class ID: 27
• UNSPSC Commodity Name: Power tools
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Power saws
• UNSPSC Family ID: 11
• UNSPSC Family Name: Hand tools
• UNSPSC Segment ID: 27
• UNSPSC Segment Name: Tools and General Machinery

Shipping Details

• Not For Sale In: HI AK PR
