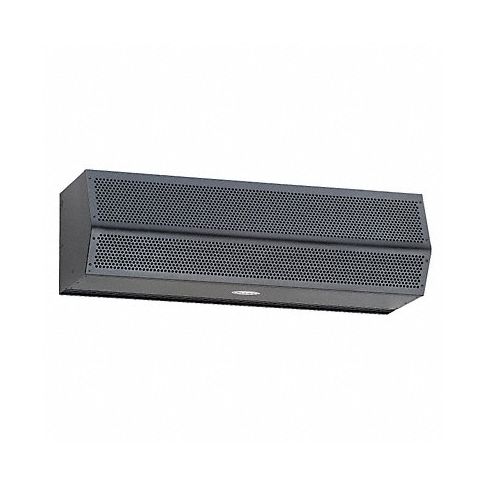

Air Curtain Multipurpose 42 In MPN:STD242-1UA-OB

This multipurpose, 1-phase air curtain is heated and helps cut your utility bills while also keeping the environment clean. It deters dust, flying insects, and pollutants. It is designed with a rugged construction and is easy to install. Provides consistent performance, maintains consistent temperatures, and reduces loss of conditioned air. Heated design also provides a comfortable work area with a warm protective barrier over openings exposed to low ambient temperatures.

Technical Specifications

• Item Air Curtain
• Air Curtain Max. Door Width 3.5 ft
• Max. Mounting Height 10 ft
• Air Curtain Air Volume 1418 cfm
• Air Curtain dBA @ 10 Feet 66
• Width 42 in
• Height 10 5/8 in
• Depth 12 5/8 in
• Number of Motors 1
• Phase 1
• Voltage 115
• Max. Amps 5.1
• Air Curtain Item Air Curtain
• Air Curtain Heated No
• Air Curtain Air Velocity 2925 fpm
• Air Curtain Finish Galvanized
• Air Curtain Housing Material Steel
• Hz 60
• Housing Color Obsidian Black
• Motor Type Permanent Split Capacitor
• Motor Enclosure Totally Enclosed Air Over
• Motor HP 1/2 hp
• Max. RPM 1,750 RPM
• Number of Speeds 3
• Requires Door Limit Switch
• Standards ETL

Manufacturer Details

• Manufacturer: Mars
• Condensed Mfg Number: STD2421UAOB
• MPN: STD242-1UA-OB

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414519060
• GDS Category Name: Air Curtains
• GDS Family Name: Ventilation Equipment and Supplies
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 27131605
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air fittings and connectors
• UNSPSC Commodity ID: 05
• UNSPSC Commodity Name: Air curtain
• UNSPSC Family ID: 13
• UNSPSC Family Name: Pneumatic machinery and equipment
• UNSPSC Segment ID: 27
• UNSPSC Segment Name: Tools and General Machinery

Shipping Details

• Not For Sale In: HI AK PR
