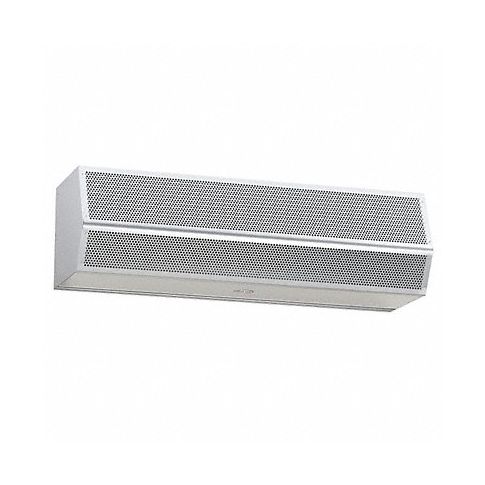

Air Curtain NSF 37 42 In MPN:NH242-1UA-TS

This 1-phase multipurpose air curtain helps cut your utility bills while also keeping the environment clean. It deters dust, flying insects, and pollutants. It is designed with a rugged construction and is easy to install. Provides consistent performance, maintains consistent temperatures, and reduces loss of conditioned air. Hardwired and ideal for protecting food preparation areas; sanitation-certified for heights up to 7-ft.

Technical Specifications

• Item Air Curtain
• Air Curtain Max. Door Width 3.5 ft
• Max. Mounting Height 7 ft
• Air Curtain Air Volume 2654 cfm
• Air Curtain dBA @ 10 Feet 70
• Width 42 in
• Height 14 in
• Depth 15 5/8 in
• Number of Motors 1
• Phase 1
• Voltage 115
• Max. Amps 9
• Air Curtain Item Air Curtain
• Air Curtain Heated No
• Air Curtain Air Velocity 4570 fpm
• Air Curtain Finish Galvanized
• Air Curtain Housing Material Steel
• Hz 60
• Housing Color Silver
• Motor Type Permanent Split Capacitor
• Motor Enclosure Totally Enclosed Air Over
• Motor HP 1 hp
• Max. RPM 1,750 RPM
• Number of Speeds 1
• Requires Door Limit Switch, Motor Control Panel
• Standards ETL, NSF

Manufacturer Details

• Manufacturer: Mars
• Condensed Mfg Number: NH2421UATS
• MPN: NH242-1UA-TS

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414519060
• GDS Category Name: Air Curtains
• GDS Family Name: Ventilation Equipment and Supplies
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 27131605
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air fittings and connectors
• UNSPSC Commodity ID: 05
• UNSPSC Commodity Name: Air curtain
• UNSPSC Family ID: 13
• UNSPSC Family Name: Pneumatic machinery and equipment
• UNSPSC Segment ID: 27
• UNSPSC Segment Name: Tools and General Machinery

Shipping Details

• Not For Sale In: HI AK PR
