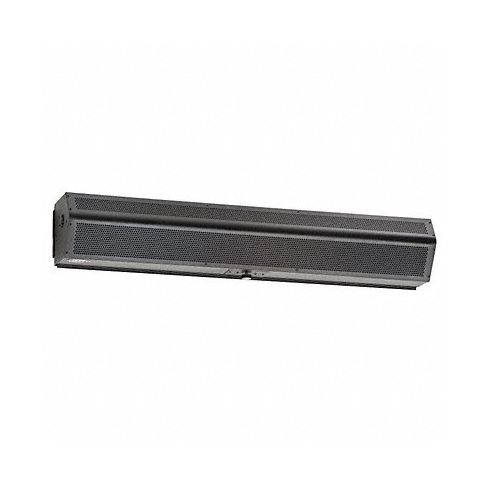

Air Curtain Low Profile 60 In MPN:LPV260-1UA-OB
Air Curtain Low Profile 60 In
The Mars Air Curtain Low Profile 60 In is an excellent choice for stabilizing environments and conserving energy by preventing air leakage through open doorways. This powerful yet efficient air curtain effectively repels flying insects, dust, and pollutants while minimizing the need for plastic-strip doors in walk-in coolers or food processing areas. With a sleek low profile design that blends seamlessly into any setting, this air curtain is ideal for customer entrances, restaurants, retail stores, and office buildings. Equipped with a 3-prong plug and mounting plates, it's easy to install and maintain, making it an essential addition to any facility that values energy efficiency and cleanliness.
Top product features:
- Low Profile Design Blends seamlessly into any setting.
- Air Curtain Effectively Repels Flying Insects, Dust, and Pollutants
- Eliminates the Need for Plastic-Strip Doors in Walk-In Coolers or Food Processing Areas.
Top product applications:
- Entrances to commercial buildings such as hotels, shopping malls, and offices to prevent air loss and conserve energy while maintaining a comfortable environment.
- Food processing facilities to keep flies, dust and debris out of the area to ensure cleanliness and safety standards are maintained.
- Retail stores where large doors are constantly opened and closed to minimize energy consumption and create a consistent temperature throughout the store.
Stabilize environments and save energy by minimizing the loss of heat or air conditioned air through open doorways. Effectively repels flying insects, dust, and pollutants. The curtain also eliminates the need for plastic-strip doors over walk-in coolers or food processing areas. Finish blends in with customer entrances, restaurants, retail, and office buildings. Includes a 3-prong plug and mounting plates.
Technical Specifications
- Item Low Profile Air Curtain
- Air Curtain Max. Door Width 5 ft
- Max. Mounting Height 8 ft
- Air Curtain Air Volume 1500 cfm
- Air Curtain dBA @ 10 Feet 53
- Width 60 in
- Height 8 in
- Depth 7 7/8 in
- Number of Motors 1
- Phase 1
- Voltage 115
- Max. Amps 2.6
- Air Curtain Item Low Profile Air Curtain
- Air Curtain Heated No
- Air Curtain Air Velocity 1800 fpm
- Air Curtain Finish Galvanized
- Air Curtain Housing Material Steel
- Hz 60
- Housing Color Silver
- Motor Type Permanent Split Capacitor
- Motor Enclosure Totally Enclosed Air Over
- Motor HP 1/6 hp
- Max. RPM 1,550 RPM
- Number of Speeds Variable
- Requires Door Limit Switch 2CLA2
- Standards ETL
- Includes Unit Mounted Variable Speed Controller
Manufacturer Details
- Manufacturer: Mars
- Condensed Mfg Number: LPV2601UAOB
- MPN: LPV260-1UA-OB
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414519060
- GDS Category Name: Air Curtains
- GDS Family Name: Ventilation Equipment and Supplies
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 27131605
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air fittings and connectors
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Air curtain
- UNSPSC Family ID: 13
- UNSPSC Family Name: Pneumatic machinery and equipment
- UNSPSC Segment ID: 27
- UNSPSC Segment Name: Tools and General Machinery
Shipping Details
- Not For Sale In: HI AK PR
