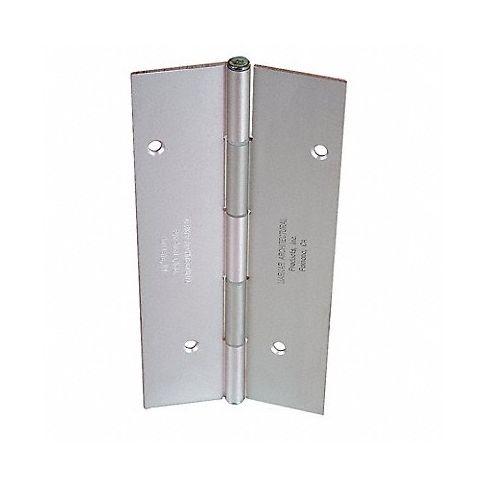

Piano Hinge 8 ft L 2-1/4 in W MPN:FM100-002-628
Piano Hinge 8 ft L 2-1/4 in W
The piano hinge provides durability and ease of movement for a variety of applications such as cabinets, gates, doors or covers while maintaining the appearance and structural integrity of furniture pieces or enclosures. Made with steel construction, it ensures long-lasting functionality and security in industries like home renovation, commercial, industrial or retail equipment manufacturing where quality materials are a must. Typical customers may include cabinet makers, woodworkers, homeowners or facility managers who require stable and attractive hinge solutions for their projects.
The MARKAR load-rated continuous hinge with holes is made from heavy-duty, 14-ga. steel and rated for doors weighing up to 600 lb., up to 1-3/4" thick, and with a maximum door with of 4 ft. Minimum door clearance of 1/8". Hinge has 1-7/8" knuckle, 3/4"-dia. 304 stainless steel hinge pin, and longlife split nylon bearing. Mount frame edge to door surface. • High-traffic, high-abuse hinge is suitable for applications that use anchor hinges, pivot reinforced hinges, or thrust pivot unit and hinge set • Aluminum with clear finish • Mounting hardware included
Technical Specifications
- Item Continuous Hinge
- Ligature Resistant No
- Material Aluminum
- Range of Motion 180 Degrees
- Finish Satin Aluminum
- Holes With
- Load Capacity 600.0 lb
- Orientation Non Handed
- Overall Knuckle Height 1 in
- Door Leaf Height 96 in
- Frame Leaf Height 96 in
- Door Leaf Width 1 3/4 in
- Frame Leaf Width 1 15/16 in
- Door Leaf Thickness 0.125 in
- Frame Leaf Thickness 0.125 in
- Required Door Thickness 1-3/4 in
- Length 8 ft
- Hardware Included
- Holes per Leaf 2
- Mounting Full Mortise
- Pin Dia. 1/4 in
- Pin Material Stainless Steel PTFE Coated
- Pin Type Nonremovable
- Standards ANSI/BHMA Standard A156.26 Grade 2
- Overall Width 4 13/16 in
Manufacturer Details
- Manufacturer: Markar
- Condensed Mfg Number: FM100002628
- MPN: FM100-002-628
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8302106030
- GDS Category Name: Piano Hinges
- GDS Family Name: Latches Hasps and Hinges
- GDS Segment Name: Hardware
- UNSPSC: 31162403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Miscellaneous fasteners
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Hinges
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 9:28pm UTC
Category: Latches Hasps and Hinges
