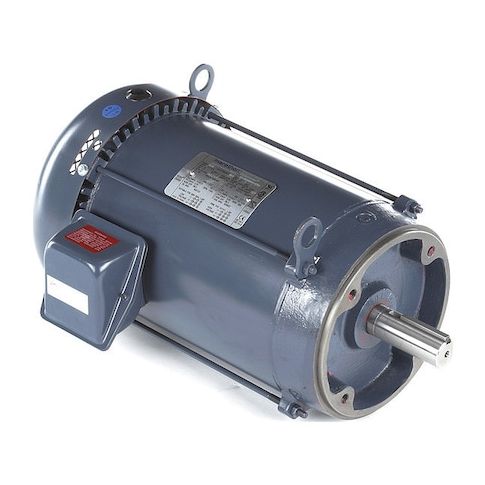

Three-Phase General Purpose Motor, 5 HP, 215TC Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM MPN:215TTFBD6079
Three-Phase General Purpose Motor, 5 HP, 215TC Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM
This 5 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial and commercial use. With a nameplate RPM of 1180 and a maximum ambient temperature of 40 degrees C, it can operate in demanding environments. The totally enclosed fan cooled motor enclosure design provides reliable operation and reduced maintenance. Suitable for continuous duty, this motor offers high efficiency and durability, making it an ideal choice for applications such as pumps, fans, and conveyor systems, where reliability and performance are crucial. Its compact design and easy mounting make it a versatile solution.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan cooled motor enclosure design provides a safe and reliable operating environment.
- Ball motor bearings ensure smooth and quiet operation.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1180 rpm, Frame 215TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.6/6.8 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 17.30
- Package Height: 14.00
- Package Weight: 169.00
Product info last updated on February 7, 2026 12:30pm UTC
Category: Motors
