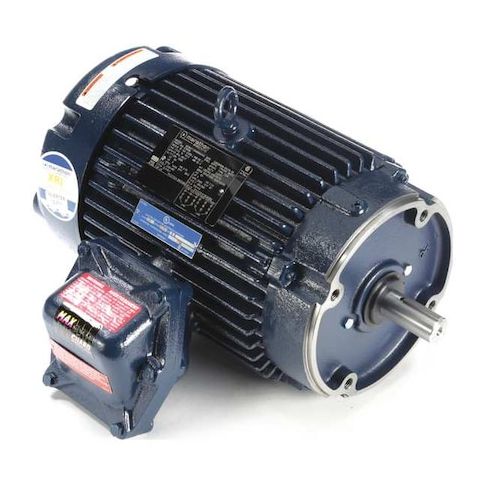

Hazardous Location Motor, 5 HP, 12.4/6.2A MPN:184TTGCD16004
Hazardous Location Motor, 5 HP, 12.4/6.2A
This 5 HP hazardous location motor from Marathon is designed for use in areas where explosive gases or dusts are present, meeting Class I, Class II, and T3B temperature ratings. Its totally enclosed fan-cooled design provides reliable operation in extreme temperatures up to 40°C. The motor's continuous duty cycle and 60 Hz operation make it suitable for a wide range of applications, including oil and gas, chemical, and manufacturing facilities. By choosing this motor, users can ensure safe and efficient operation in hazardous environments, reducing downtime and increasing productivity.
Top product features:
- Three-phase motor design
- Totally enclosed fan cooled enclosure
- Thermal protection through T-Stat motor protection
Top product applications:
- Explosion-proof mining equipment
- Oil and gas well drilling and pumping systems
- Power generation and transmission stations in hazardous environments
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,495 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 12.4/6.2 A, 184TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.80
- Package Height: 14.00
- Package Weight: 175.00
Product info last updated on March 26, 2026 8:04am UTC
Category: Motors
