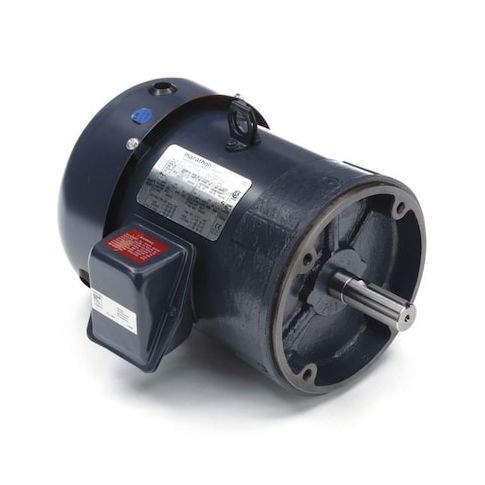

Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 230/460V AC Voltage, 1762 rpm Nameplate RPM MPN:182TTFBD6029
Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 230/460V AC Voltage, 1762 rpm Nameplate RPM
This 3 HP three-phase general purpose motor from Marathon is designed for a wide range of industrial applications, including manufacturing, material handling, and oil and gas operations. With a totally enclosed fan cooled motor enclosure and ball bearings, it provides reliable performance in harsh environments. Its high efficiency and continuous duty rating make it an ideal choice for applications requiring consistent power output. Suitable for use in facilities with varying voltage requirements, this motor can operate at 230/460V AC, making it a versatile solution for various industrial settings.
Top product features:
- Three-Phase AC Voltage Support
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial Automation
- Material Handling Equipment
- Pumps and Compressors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1762 rpm, Frame 182TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.0/4.0 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.10
- Package Width: 16.10
- Package Height: 14.80
- Package Weight: 70.10
Product info last updated on March 25, 2026 2:23am UTC
Category: Motors
