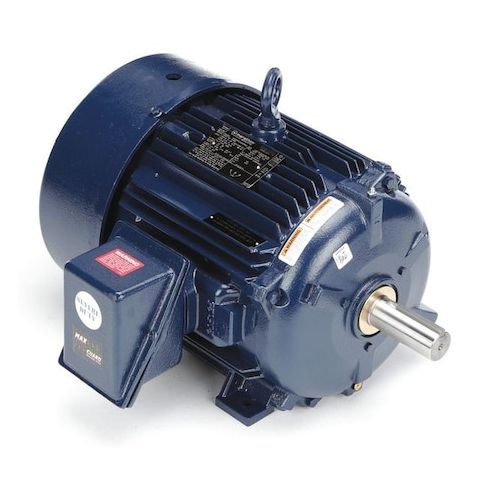

IEEE 841 Motor, 3-Ph, TEFC, 15 HP, T2B MPN:254THFCD9026
IEEE 841 Motor, 3-Ph, TEFC, 15 HP, T2B
The Marathon IEEE 841 Motor is a severe duty, three-phase motor designed for high-performance applications. Built with a 254T frame and rated at 15 HP, this motor operates at 1,772 RPM and is suitable for use in hazardous locations, including Division 2/Zone 2 Class 1, Groups A, B, C, and D environments. Its Class H insulation and 1.15 service factor ensure reliable operation in temperatures up to 40°C. Ideal for demanding applications such as oil and gas, chemical processing, and power generation, this motor provides increased efficiency and reduced downtime, making it a valuable addition to any industrial operation.
Top product features:
- Three-phase motor design
- Thermal protection is not included
- Class H insulation
Top product applications:
- Pumps
- Conveyors
- Crushers
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 15 hp HP, Nameplate RPM 1,772 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 18.8 A, 254T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D, Temp. Code T2B
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 32.00
- Package Height: 26.00
- Package Weight: 319.00
Product info last updated on February 15, 2026 3:09pm UTC
Category: Motors
