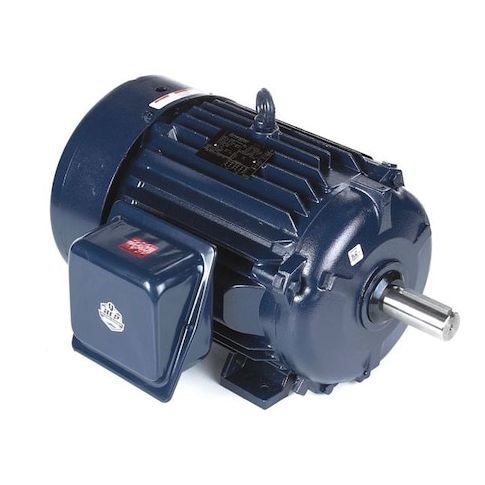

Three-Phase General Purpose Motor, 30 HP, 286T Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM MPN:286TTFCD6070
Three-Phase General Purpose Motor, 30 HP, 286T Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM
This 30 HP three-phase general purpose motor from Marathon is a reliable and efficient solution for a variety of industrial applications, including manufacturing, processing, and material handling. With a totally enclosed fan cooled design and cast iron frame, it can operate in harsh environments and withstand high temperatures. The motor's high efficiency and continuous duty rating make it ideal for applications requiring constant operation, such as conveyor systems, pumps, and compressors. Its compact design and rigid base mounting make it easy to integrate into existing systems, providing a cost-effective and hassle-free solution for industrial needs.
Top product features:
- Three-phase operation provides efficient power distribution and motor performance.
- Totally enclosed fan cooled design ensures reliable operation in various ambient temperatures.
- Ball bearings provide smooth and quiet motor operation.
Top product applications:
- Industrial Automation
- Pump Applications
- Material Handling Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 1775 rpm, Frame 286T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 73.0/36.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 27.00
- Package Height: 26.00
- Package Weight: 432.00
Product info last updated on February 1, 2026 7:05pm UTC
Category: Motors
