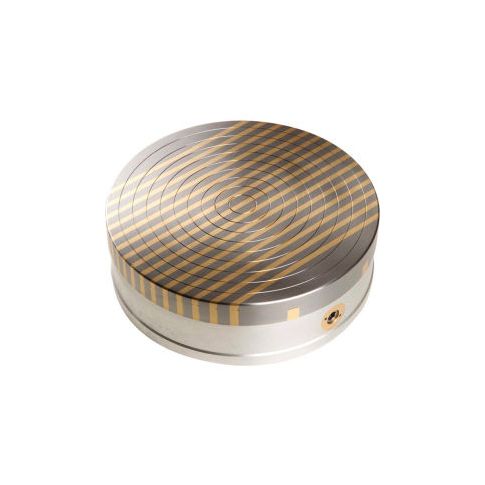

MPI Double Ceramic Round Chuck 12" Dia. 3'H RC-0300-CER

Due to its high holding force and watertight top plate the mpi double ceramic round chuck is an indispensable tool during workpiece turning and circular grinding. The relatively small pole pitch and a low magnetic field make it suitable for thinner workpieces from 0.3" or from 0.5" depending on the chuck diameter or pole pitch. The top plate is magnetic with each pole individually magnetized by powerful ceramic permanent magnets so electrical controls and collector rings are not required. Frequent magnet polarity changes result in low magnet field to prevent magnetization of tool bits. Features ul style"margin-top0px;padding-top 5px; padding-bottom 5px;" solid silver brazed top plate with parallel poles double ferrite magnetic system waterproof design very light aluminum body aluminum base with the possibility of mounting on a flange or into a chuck pole pitch t13 8+5mm (steel/brass) or t17 12+5mm (steel/brass) t0.5 0.3 + 0.2 in (steel/brass) or t0.7 0.5 + 0.2" (steel/brass) holding force up to 140n/cm / 203lbs/in depending on size of chuck poles transverse 1 year warranty for the magnetic system
