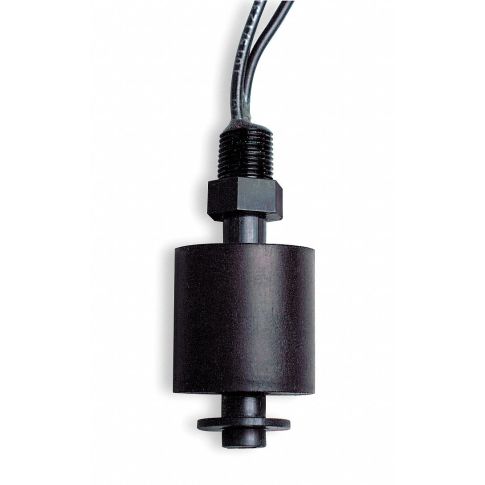

Lqd Lvl Swch Vrtcl 1/8 NPT 30 VA Rating MPN:M7000
Lqd Lvl Swch Vrtcl 1/8 NPT 30 VA Rating
Introducing the Lqd Lvl Swch Vrtcl 1/8 NPT 30 VA Rating from Madison, an ideal solution for controlling and monitoring liquid levels in your tank or vessel. With a selectable switch function, this reliable and durable liquid level switch is designed to deliver more than 5 million switching cycles at rated electrical load. Mount it vertically on an open tank with a 1/8 in NPT connection for easy installation and operation. Perfect for use in various industries such as chemical processing, water treatment, and agriculture, this switch can withstand pressures up to 150 psi, making it a versatile choice for your liquid level control needs. Take control of your liquids today with the Lqd Lvl Swch Vrtcl from Madison!
Top product features:
- Selectable switch function allows for greater control over liquid level management
- Magnetically coupled dry reed switch provides reliable and durable operation
- Vertical open tank mounting enables easy installation and operation on a variety of tank types
Top product applications:
- Monitoring and controlling liquid levels in open tanks
- Activating alarms when low or high liquid levels are detected
- Actuating motor starters, contactors, solenoids, or relays for various industrial applications
This switch mounts on the top and bottom surfaces of a tank or vessel to actuate High/Low alarms or controls for motor starters, contactors, solenoids, and relays. The encapsulated, dependable, magnetically coupled dry reed switch is designed to deliver more than 5 million switching cycles at rated electrical load.
Technical Specifications
- Item Liquid Level Switch
- Switch Function Selectable
- Mounting Vertical Open Tank
- Tank Connection Size 1/8 in NPT
- Max. Pressure 150 psi
- VA Rating 30
- Operating Temp. Range 221 Degrees F Max
- Overall Length 2.25 in
- Float Material Buna N
- Float Length 1.0 in
- Float Dia. 1.0 in
- Stem Material PBT
- Stem Length 1.63 in
- Height 2.25 in
- Width 1 in
- Contact Form SPST
- Max. Current 0.28 A
- Max. Voltage 240 V
- Body Material PBT
- Conduit Size 1/8 in
- Standards CE, CSA, UL
- Electrical Connections 22 AWG PTFE Coated 24 in Leads
- Float Specific Gravity 0.45
