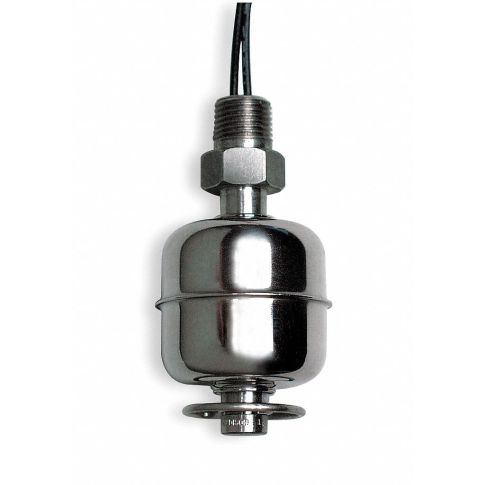

Lqd Lvl Swch Vrtcl 1/8 NPT 392F Max MPN:M5000
SKU
226-CXG-4YM31
Lqd Lvl Swch Vrtcl 1/8 NPT 392F Max.
This versatile liquid level switch serves multiple purposes such as coolant detection systems or sump pump controls to activate high sensitivity alerts in various industries like automotive, HVAC, industrial processes to prevent damage caused by liquids overflow. Constructed with durable thermoplastic materials, it can handle various chemicals ensuring long-lasting performance whilst providing easy installation due to its 1/8 NPT fitting without needing tools easing maintenance and troubleshooting processes making it an ideal device to avoid costly repairs while preventing downtime or damages in the operation.
This encapsulated, dependable, magnetically coupled, dry-reed switch delivers more than 5 million switching cycles at a rated electrical load. Use to control motor starters, contactors, solenoids, and relays.
Technical Specifications
- Item Liquid Level Switch
- Switch Function Selectable
- Mounting Vertical Open Tank
- Tank Connection Size 1/8 in NPT
- Max. Pressure 300 psi
- VA Rating 30
- Operating Temp. Range 392 Degrees F Max
- Overall Length 2.25 in
- Float Material Stainless Steel
- Float Length 1.19 in
- Float Dia. 1.13 in
- Stem Material Stainless Steel
- Stem Length 1.63 in
- Height 2.25 in
- Width 1.18 in
- Contact Form SPST
- Max. Current 0.28 A
- Max. Voltage 240 V
- Body Material Stainless Steel
- Conduit Size 1/8 in
- Standards CE, CSA, NSF, UL
- Electrical Connections 22 AWG PTFE Coated 24 in Leads
- Float Specific Gravity 0.7
Manufacturer Details
- Manufacturer: Madison
- Condensed Mfg Number: M5000
- MPN: M5000
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026106000
- GDS Category Name: Vertical Mount Closed Tank Level Switch
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121531
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 31
- UNSPSC Commodity Name: Level or float switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
