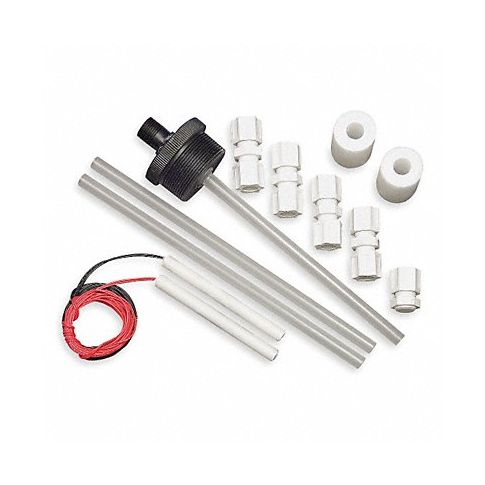

Multi-level Lqd Swch Vrtcl 2 NPT PP MPN:ML8888

This switch mounts on the top and bottom surfaces of a tank or vessel to actuate High/Low alarms or controls for motor starters, contactors, solenoids, and relays. The encapsulated, dependable, magnetically coupled dry reed switch is designed to deliver more than 5 million switching cycles at rated electrical load.

Technical Specifications

• Item Multi-Level Liquid Level Switch
• Switch Function Selectable
• Mounting Vertical Open Tank
• Tank Connection Size 2 in NPT
• Max. Pressure 100 psi
• VA Rating 60
• Operating Temp. Range 221 Degrees F Max
• Overall Length 46 in
• Float Material Polypropylene
• Float Length 2.0 in
• Float Dia. 1.5 in
• Stem Material Polypropylene
• Stem Length Adjustable
• Contact Form SPST
• Max. Current 0.5 A
• Max. Voltage 240 V
• Body Material Polypropylene
• Conduit Size 2 in
• Standards CE, UL
• Electrical Connections 23 AWG PTFE
• Float Specific Gravity 0.75

Manufacturer Details

• Manufacturer: Madison
• Condensed Mfg Number: ML8888
• MPN: ML8888

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9032896060
• GDS Category Name: Vertical Mount Closed Tank Level Switch
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 39121531
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 31
• UNSPSC Commodity Name: Level or float switches
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
