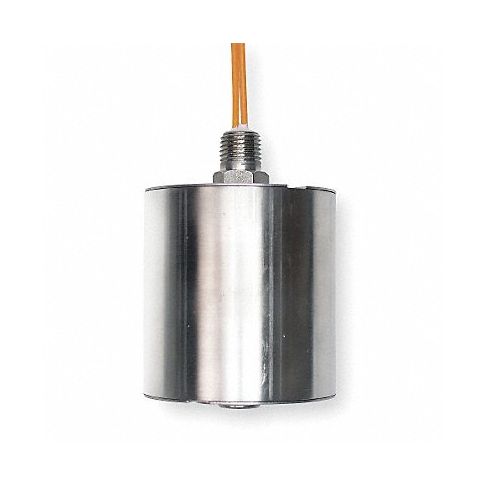

Lqd Lvl Swch Vrtcl 1/4 NPT 60 VA Rating MPN:MS5917
Lqd Lvl Swch Vrtcl 1/4 NPT 60 VA Rating
LQD LVL SWCH VRTCL 1/4 NPT 60VA rating is a durable and reliable level switch ideal for a range of industrial applications requiring precise liquid level monitoring. Featuring a vertically mounting design, this high-quality component boasts a powerful 60VA rating to provide users with accurate readings even in challenging environments. Essential in the food and beverage, chemical, petrochemical, and water treatment industries among others, this versatile level switch offers an efficient solution for ensuring consistent and controlled flow of fluids.
This switch mounts on the top and bottom surfaces of a tank or vessel to actuate High/Low alarms or controls for motor starters, contactors, solenoids, and relays. The encapsulated, dependable, magnetically coupled dry reed switch is designed to deliver more than 5 million switching cycles at rated electrical load.
Technical Specifications
- Item Liquid Level Switch
- Switch Function Selectable
- Mounting Vertical Open Tank
- Tank Connection Size 1/4 in NPT
- Max. Pressure 200 psi
- VA Rating 60
- Operating Temp. Range 482 Degrees F Max
- Overall Length 3.38 in
- Float Material Stainless Steel
- Float Length 2.0 in
- Float Dia. 2.13 in
- Stem Material Stainless Steel
- Stem Length 2.63 in
- Height 3.38 in
- Width 3.38 in
- Contact Form SPST
- Max. Current 0.5 A
- Max. Voltage 240 V
- Body Material Stainless Steel
- Conduit Size 1/4 in
- Standards CSA
- Electrical Connections 18 AWG PTFE Coated 24 in Leads
- Float Specific Gravity 0.55
Manufacturer Details
- Manufacturer: Madison
- Condensed Mfg Number: MS5917
- MPN: MS5917
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9032896060
- GDS Category Name: Vertical Mount Closed Tank Level Switch
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121531
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 31
- UNSPSC Commodity Name: Level or float switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:15pm UTC
Category: Switches
