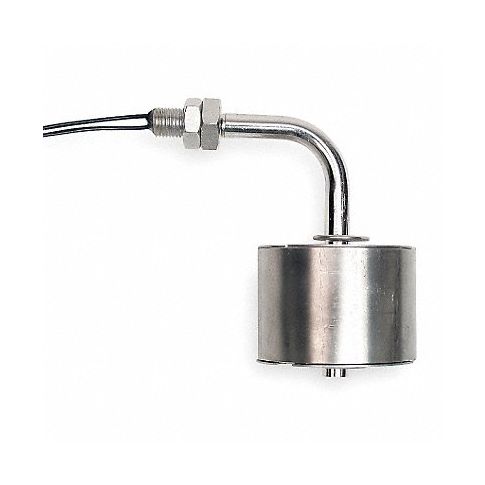

Lqd Lvl Swch Hrzntl 3/8-24 UNF 30 VA Rtg MPN:MS5010
SKU
226-CXG-2ZY40
Lqd Lvl Swch Hrzntl 3/8-24 UNF 30 VA Rtg
Our Premium quality LQD Level Switch is a high-performance liquid level sensor, designed to detect changes in fluid levels accurately and reliably in industrial applications. This model features an IP65 enclosure rating for weatherproof protection, 3/8''-24 NPT male thread, UNF threads at the probe tip (30-70), temperature range of -13F to 392F (-25C to 199C), and voltage rating of 24 VAC. This level switch is ideal for detecting fluid levels in water treatment plants, chemical processing industries, and HVAC systems to provide protection against overfill or underflow conditions - perfect for operators seeking accurate liquid level monitoring in challenging environments!
This liquid level switch is designed to easily convert from high to low alarm, or from pump-up to pump-down operation by rotating 180°. It mounts to the outside of a tank or vessel using an NPT coupling, or to the inside using a bulkhead fitting (UNC/UNF). The dependable, encapsulated, magnetically coupled dry reed switch delivers more than 5 million switching cycles at a rated electrical load to control motor starters, contactors, solenoids, and relays.
Technical Specifications
- Item Tank Liquid Level Switch
- Switch Function Selectable
- Mounting Side
- Tank Connection Size 3/8-24 UNF
- Contact Form SPST
- VA Rating 30
- Operating Temp. Range 392 Degrees F Max.
- Max. Pressure 300 psi
- Overall Length 2.96 in
- Float Material Stainless Steel
- Float Length 1.19 in
- Float Dia. 1.13 in
- Stem Material Stainless Steel
- Stem Length 2.96 in
- Height 1.61 in
- Width 1.5 in
- Max. Current 0.28 A
- Max. Voltage 240
- Body Material Stainless Steel
- Conduit Size 3/8 in 24
- Standards CE CSA UL
- Electrical Connections 22 ga PTFE Coated 24 in Leads
- Float Specific Gravity 0.7
Manufacturer Details
- Manufacturer: Madison
- Condensed Mfg Number: MS5010
- MPN: MS5010
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026106000
- GDS Category Name: Side Mount Closed Tank Level Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121531
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 31
- UNSPSC Commodity Name: Level or float switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
