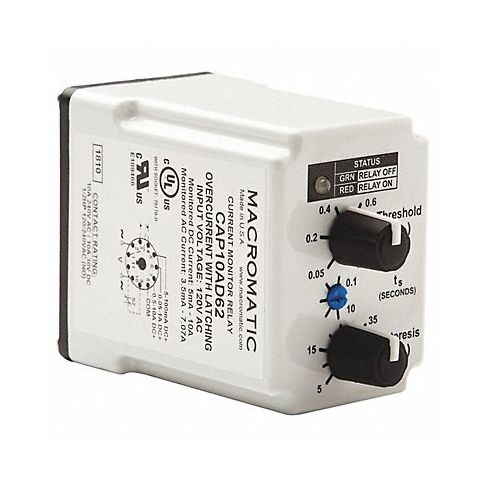

Current Sensing Relay SPDT Form 120VAC MPN:CAP10AD62

This internal core current sensor relay is designed to help monitor the current flow in a conductor. It activates at a fixed or adjustable current setting point. Sensors can detect locked rotors, loss of current, open heaters, or lamp loads.

Technical Specifications

• Item - Relay Current Sensing Relay
• Input or Control Voltage 120V AC
• AC Contact Rating - Relay 10A @ 240V
• DC Contact Rating - Relay 8A @ 28V
• Mounting - Relay Plug In
• Contact Form - Relay SPDT
• Sensing Amp Range 0.10 to 10.00A
• Trip Point Adjustable 0.10 to 10.00A
• Trip Delay 0.10 to 10 sec
• Core Type - Relay Internal
• Type of Output Relay
• Status Indicator LED
• Electrical Connection Terminal Strip
• Sensor Opening Internal
• Max. Inrush Current 150 A

Manufacturer Details

• Manufacturer: Macromatic
• Condensed Mfg Number: CAP10AD62
• MPN: CAP10AD62

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490075
• GDS Category Name: Current Sensor Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121520
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 20
• UNSPSC Commodity Name: Overload relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
