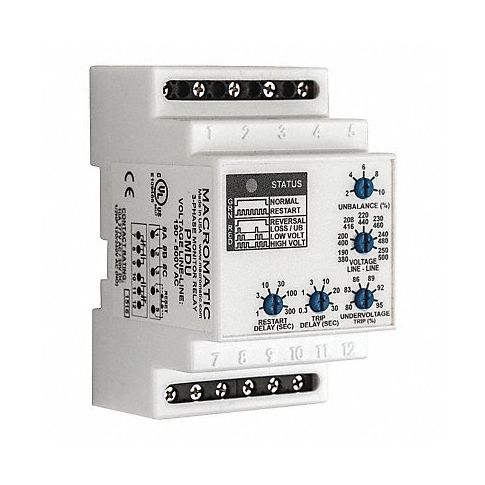

Phase Monitor Relay 190-500VAC DIN DPDT MPN:PMDU
Macromatic's PMD Series Three-Phase Monitor Relay is an essential safety device designed for continuous monitoring of three-phase systems with a voltage range of 190-500V AC. Its advanced features detect single phasing, unbalanced voltages, and phase loss, ensuring maximum protection against expensive damage to motors and equipment. By continuously monitoring all three phases even during a phase loss, the PMD Series increases the ease of troubleshooting and levels of protection. With a rugged design and high contact rating of 10A @ 277V AC, this reliable relay is perfect for use in various applications including motor control, pump control, and more. Its versatility and cost-effective nature make it a must-have for industries seeking to safeguard their investments from sudden failures and costly damages.
Top product features:
- Continuous monitoring of all voltages of a 190-500V three-phase system
- Detects single phasing and unbalanced voltages regardless of regenerative voltages
- Retains fault indication and continuous monitoring during phase loss
Top product applications:
- Protecting motors and equipment from expensive damage due to phase loss, phase reversal, phase unbalance, undervoltage, or overvoltage faults
- Controlling pumps or compressors in large industrial processes
- Monitoring power quality in commercial buildings or data centers
Technical Specifications
- Item - Relay Phase Monitor Relay
- Input or Control Voltage 190 to 500V AC
- AC Contact Rating - Relay 10A @ 277V
- DC Contact Rating - Relay 10A @ 30V
- Number of Pins - Relay 12
- Mounting - Relay DIN Rail
- Contact Form - Relay DPDT
- Over Voltage Fixed 110% of Line Voltage Setting
- Under Voltage 171 to 450V AC
- Phase Loss Sensitivity Yes
- Phase Loss Time Delay Fixed 0.1 sec
- Phase Reversal Yes
- Phase Reversal Time Delay Fixed 0.1 sec
- Phase Unbalance Adjustable 2 to 10%
- Phase Unbalance Time Delay Adjustable 0.3 to 30.0 sec
- Restart Auto, Manual
- Restart Time Delay Adjustable 1.0 to 300.0 sec
- Body Height - Relay 3.5 in
- Body Width - Relay 2.1 in
- Body Depth - Relay 2.2 in
- Overall Height - Relay 2.4 in
