Fuse Class CC 15A KLKR Series MPN:KLKR015

Discount: See in Cart
Free Shipping
In Stock
Brand: Littelfuse
Part #: KLKR015
SKU
226-CXO-486M77

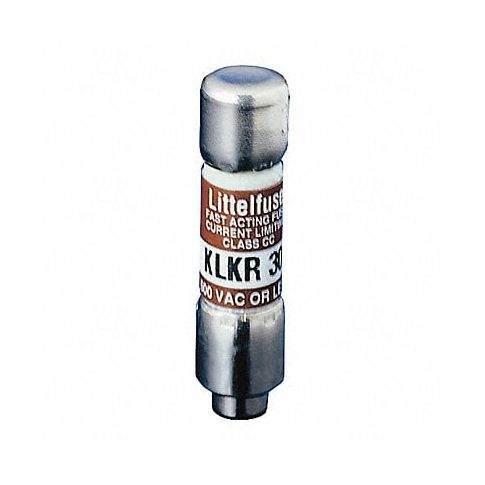

Fuse Class CC 15A KLKR Series
Fast-acting, nonindicating UL Class CC fuses open within seconds of being exposed to overloads and short circuits. These series KTK-R, KLKR, and ATMR fuses are commonly found in appliances, integrated circuits, control circuits, control circuit transformers, and other equipment with specific current-limitation requirements. Also called fast-blow Class CC fuses, they are highly sensitive to changes in current flow and don't tolerate temporary overload currents or power surges. They have no indicator for identifying a blown fuse, so they're sometimes used with an indicating fuse block or cover.

UL Class CC fuses provide a high interrupting rating and current limitation for overcurrent protection of branch circuits, control circuits, lighting, transformers, and general loads. Their rejection feature ensures a match with Class CC rejection fuse blocks and holders that prevent midget fuses from being installed. These 600VAC fuses have an interrupting rating (IR) of 200kA and are the smallest 600VAC, 200kA fuses approved for branch circuits. They are current-limiting to prevent electrical damage by disconnecting circuits before they're exposed to the full magnitude and duration of an overcurrent.

Technical Specifications

  • Item UL Class CC Fuse
  • Amps 15 A
  • AC Voltage Rating 600V AC
  • DC Voltage Rating 300V DC
  • Class CC
  • Series KLKR
  • Visual Indication Nonindicating
  • Speed Fast Acting
  • Body Style Cylindrical
  • Fits Fuse Block Style Rejection
  • Interrupt Rating 200kA at 600V AC, 20kA at 300V DC
  • Fuse Size 1-1/2 in L x 13/32 in dia
  • Length 1 1/2 in
  • Diameter 13/32 in
  • Equivalent Brand and Series Bussmann KTK-R, Littelfuse KLKR, Mersen ATMR
  • Equivalent Series ATMR, KLKR, KTK-R
  • Compatible Fuse Block Series L600C
  • Body Material Melamine
  • Element Dual
  • Standards CE, CSA Certified, RoHS, UL 248-4, UL Listed

Manufacturer Details

  • Manufacturer: Littelfuse
  • Condensed Mfg Number: KLKR015
  • MPN: KLKR015

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: MX
  • CA Prop 65 Wht Label: Y
  • CA Prop 65 Cancer Warning: Lead
  • CA Prop 65 Repro Warning: Lead
  • CA Prop 65 Warning Msg Scenario: 4

Classification Details

  • Harmonization Code: 8536100040
  • GDS Category Name: Class CC Fuses
  • GDS Family Name: Fuses
  • GDS Segment Name: Electrical
  • UNSPSC: 39121608
  • UNSPSC Class ID: 16
  • UNSPSC Commodity Name: Circuit protection devices and accessories
  • UNSPSC Commodity ID: 08
  • UNSPSC Commodity Name: Class type fuses
  • UNSPSC Family ID: 12
  • UNSPSC Family Name: Electrical equipment and components and supplies
  • UNSPSC Segment ID: 39
  • UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
