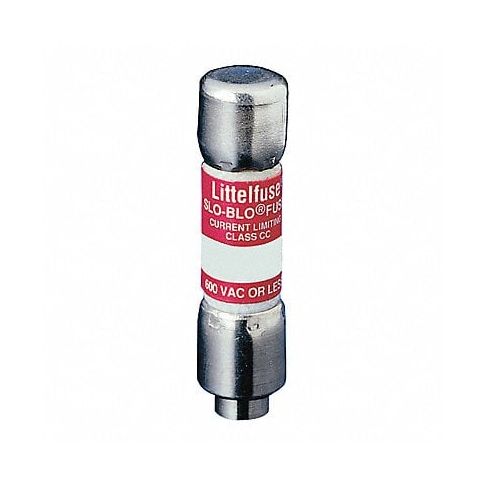

Fuse Class CC 2-1/2A KLDR Series MPN:KLDR02.5
SKU
226-CXO-486M40
Fuse Class CC 2-1/2A KLDR Series
Sterling Seal & Supply's fuse class CC 2-1/2A KLDR series is designed to protect electronic equipment from damage caused by short circuits and overloads. Its class CC rating makes it ideal for use with sensitive electronic devices such as computers, servers, and communication equipment that require high rupture capacity fuses. The fuse is available in different voltage ratings and current capacities to suit various applications. By using Sterling Seal & Supply's fuse class CC 2-1/2A KLDR series, customers can ensure the protection of their valuable electronic equipment from potential damage caused by electrical faults.
Time-delay, nonindicating UL Class CC fuses tolerate temporary inrush currents without opening, which prevents nuisance-blowing from motor and equipment startups. Also called slow-blow Class CC fuses, they open to disconnect an electrical circuit when exposed to sustained loads and short circuits. They have no indicator for identifying a blown fuse, so they're sometimes used with an indicating fuse block or cover. Series LP-CC, ATDR, and CCMR fuses protect small motors and branch-circuit components. Series FNQ-R, ATQR, and KLDR handle inductive loads from devices such as control transformers and solenoids.UL Class CC fuses provide a high interrupting rating and current limitation for overcurrent protection of branch circuits, control circuits, lighting, transformers, and general loads. Their rejection feature ensures a match with Class CC rejection fuse blocks and holders that prevent midget fuses from being installed. These 600VAC fuses have an interrupting rating (IR) of 200kA and are the smallest 600VAC, 200kA fuses approved for branch circuits. They are current-limiting to prevent electrical damage by disconnecting circuits before they're exposed to the full magnitude and duration of an overcurrent.
Technical Specifications
- Item UL Class CC Fuse
- Amps 2 1/2 A
- AC Voltage Rating 600V AC
- DC Voltage Rating 300V DC
- Class CC
- Series KLDR
- Visual Indication Nonindicating
- Speed Time Delay
- Body Style Cylindrical
- Fits Fuse Block Style Rejection
- Interrupt Rating 200kA at 600V AC, 20kA at 300V DC
- Fuse Size 1-1/2 in L x 13/32 in dia
- Length 1 1/2 in
- Diameter 13/32 in
- Equivalent Brand and Series Bussmann FNQ-R, Littelfuse KLDR, Mersen ATQR
- Equivalent Series ATQR, FNQ-R, KLDR
- Compatible Fuse Block Series L600C
- Body Material Melamine
- Element Dual
- Standards CE, CSA Certified, RoHS, UL 248-4, UL Listed
Manufacturer Details
- Manufacturer: Littelfuse
- Condensed Mfg Number: KLDR025
- MPN: KLDR02.5
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: Y
- CA Prop 65 Cancer Warning: Lead
- CA Prop 65 Repro Warning: Lead
- CA Prop 65 Warning Msg Scenario: 4
Classification Details
- Harmonization Code: 8536100040
- GDS Category Name: Class CC Fuses
- GDS Family Name: Fuses
- GDS Segment Name: Electrical
- UNSPSC: 39121608
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Class type fuses
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:40am UTC
