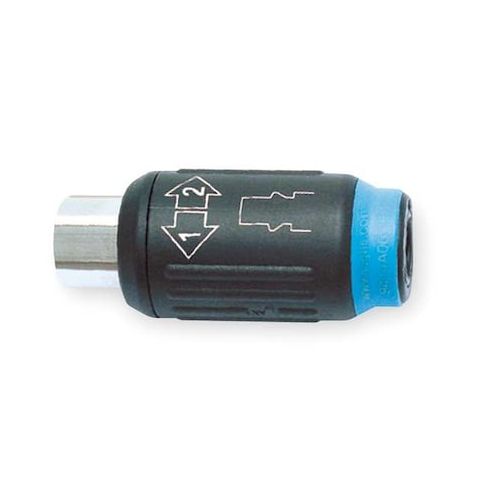

Coupler, 1/4, Glass Reinforced Nylon MPN:9415U06 18
Free Shipping
In Stock
The Legris 9415U06 18 coupler is a reliable and efficient solution for connecting and disconnecting pneumatic equipment and hoses. Designed for tool-less connection and disconnection, this coupler features a locking mechanism to retain the connection during operation, reducing air leakage and ensuring a secure fit. With a maximum rated flow rate of 1,250 liters per minute and a working pressure of 232 psi, this coupler is suitable for use with air and other compatible gases in automotive equipment and blowguns. Its compact design and easy-to-use interface make it an ideal choice for a variety of applications in the industrial and automotive sectors.
Top product features:
- Push-to-connect capability for tool-less connection and disconnection
- Integrated ball valve for controlling airflow
- Locking mechanism to retain the connection during operation
Top product applications:
- Automotive equipment
- Blowguns
- Pneumatic equipment
The LEGRIS - 9415U06 18 is a hose coupling for pneumatic equipment with push-to-connect capability for tool-less connection and disconnection (as applicable to the product design), designed to help connect and disconnect hoses or equipment while using sealing components intended to reduce air leakage when connected in accordance with the manufacturer’s installation instructions. Rated for use with air and other compatible gases as specified for pneumatic service, it is compatible with automotive equipment and blowguns. Made from polymer material, this coupling includes an integrated ball valve for controlling airflow and uses a locking mechanism intended to retain the connection during operation.
Key Features:
- - Coupling size and body size: 1/4 in
- - Hose fitting size: 3/8 in with male hose fitting gender
- - Connection type: NPT thread size 3/8"-18
- - Maximum rated flow rate: 1,250 liters per minute (under rated conditions)
- - Maximum rated working pressure: 232 psi at 70°F (when used within specified conditions)
- - Rated operating temperature range: -4°F to 140°F
- - Overall length: 2.83 in (72 mm)
- - Maximum outside diameter: 31.5 mm
- - Interchange type: Industrial
- - Coupling component included: Socket
- - Color: Black
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.40
- Package Height: 5.40
- Package Weight: 0.20
