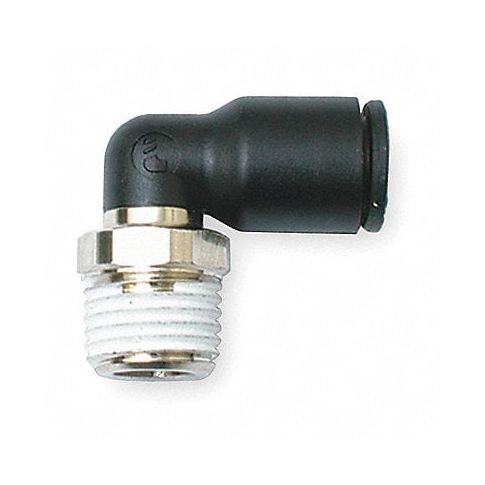

Male Elbow 3/16 In OD 290 PSI PK10 MPN:3109 55 11

Glass-Filled Nylon Push-To-Connect Fittings

• Max. operating pressure: 290 psi Temp. range: -4° to 175°F Pkg. qty.: 10, unless otherwise noted
Stainless steel gripping ring provides a secure, leak-free connection without tools; disconnects easily with the plastic release button. All threaded elbows, tees, and Y's swivel around the threaded, nickel-plated base for easy installation. Fitting bodies are a composite material—nylon and nickel-plated brass. Thread sealant is preapplied to all tapered threads. Buna N elastomer seals. Can be used with all pneumatic machines, as well as for food-processing, packaging equipment, textile machinery, robotics, and semiconductor applications. Use with semirigid nylon, flexible polyurethane, polyethylene, and PTFE tubing.

Technical Specifications

• Item Elbow, 90 Degrees
• Basic Material Plastic/Metal Combination
• Body Material Glass Filled Nylon and Nickel Plated Brass
• Connection Type Tube x MNPT
• Tube Size 3/16 in
• Pipe Size 1/8 in
• Max. Pressure 290 psi
• Color Black
• Temp. Range -4 Degrees to 175 Degrees F
• Hex Size 11 mm
• Special Features With Thread Sealant

Manufacturer Details

• Manufacturer: Legris
• Condensed Mfg Number: 31095511
• MPN: 3109 55 11

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 7412200035
• GDS Category Name: Push-Fit Couplings Adapters Unions and Elbows
• GDS Family Name: Tube Fittings
• GDS Segment Name: Plumbing
• UNSPSC: 40142317
• UNSPSC Class ID: 23
• UNSPSC Commodity Name: Pipe fittings
• UNSPSC Commodity ID: 17
• UNSPSC Commodity Name: Pipe elbows
• UNSPSC Family ID: 14
• UNSPSC Family Name: Fluid and gas distribution
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
