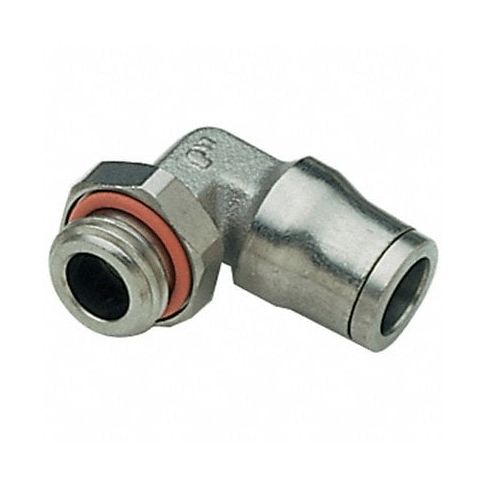

90 Elbow TubexBSPP 1/4 1/8 MPN:3699 06 10
SKU
226-CXO-18E490
90 Elbow TubexBSPP 1/4 1/8
A versatile fitting, it features a 90-degree angle that enables fluid to divert from one direction to another and allows flow to proceed at an angled intersection thus allowing for increased fluid pressure when bends are needed consistentl. This 90 elbow Tubex BSPP is suited in various industries including aerospace, automotive, mining where it serves as an efficient tool for assembling plumbing systems due to its metallic construction providing resilience, high resistance to corrosion consistentl thus reliability in its functions.
Easy to install, connect, and disconnect, this LEGRIS 90° male elbow features high phosphorus chemical nickel plating that resists abrasion, chemicals, and corrosion. Fitting is ideal for aggressive environments such as in welding applications where fittings must remain intact even if hit by weld spatter. Elbow is FDA approved for use in food processing applications.
Technical Specifications
- Item Male Elbow, 90 Degrees
- Tube Fitting Material Nickel Plated Brass
- Fitting Connection Type Tube x BSPP
- Pipe Size - Pipe Fitting 1/8 in
- Tube Size 1/4 in
- Max. Pressure 435 psi
- Temp. Range -4 Degrees to 302 Degrees F
- Hex Size 13 mm
Manufacturer Details
- Manufacturer: Legris
- Condensed Mfg Number: 36990610
- MPN: 3699 06 10
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ES
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 7412200000
- GDS Category Name: Push-Fit Couplings Adapters Unions and Elbows
- GDS Family Name: Tube Fittings
- GDS Segment Name: Plumbing
- UNSPSC: 40142604
- UNSPSC Class ID: 26
- UNSPSC Commodity Name: Tube fittings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Tube elbows
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 10:51am UTC
Category: Tube Fittings
