WashdownMotor, 5hp, 1760RPMT, 230/460VAC MPN:132197.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4609206
WashdownMotor, 5hp, 1760RPMT, 230/460VAC

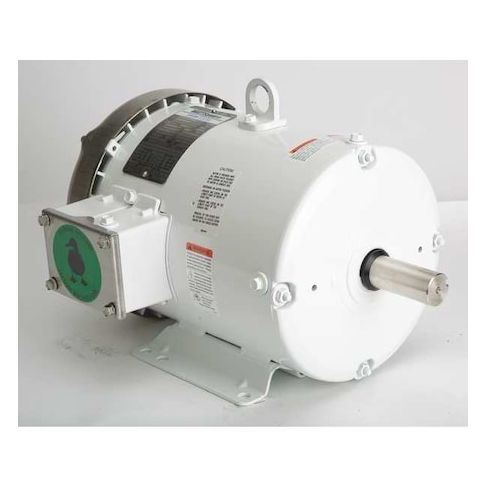

The Marathon Washdown Motor is a rugged and reliable solution for demanding applications where exposure to water and harsh environments is a concern. With a 5 HP rating and 1,760 RPM nameplate speed, this motor is ideal for use in food processing, pharmaceutical, and other industries where cleanliness and sanitation are paramount. Its rigid base design and totally enclosed fan-cooled enclosure ensure long life and minimal maintenance, while its continuous duty cycle and NEMA Design B rating provide peace of mind for heavy use. This motor is a versatile and dependable choice for a wide range of applications.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled design
- Continuous duty cycle
Top product applications:
- Food Processing Equipment
- Chemical Processing Equipment
- Pharmaceutical Processing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.6/6.3 A, 184T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.60
- Package Width: 15.60
- Package Height: 13.20
- Package Weight: 90.00
Product info last updated on February 23, 2026 11:11am UTC
Category: Motors
