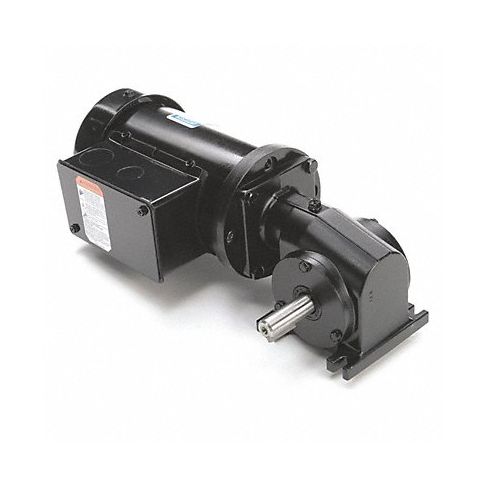

AC Gearmotor 86 rpm TEFC 208-230V MPN:M1145129.00

Technical Specifications

• Item AC Gearmotor
• Gearmotor Type AC Gearmotor
• Gearmotor Voltage 208-230V AC
• Gearmotor Phase 3
• Max. Torque 138.0 in-lb
• Gearmotor Shaft Type Single Right
• Gearmotor Shaft Orientation Right Angle
• Gearmotor Rotation CW/CCW
• Nameplate RPM 86 RPM
• Gearmotor Enclosure Totally Enclosed Fan-Cooled
• Gearmotor Mounting Position Horizontal or Vertical Shaft Down
• Gearmotor Brake Type None
• Length Less Shaft 12 31/100 in
• Hz 60 Hz
• No Load RPM 89 RPM
• Overhung Load 235 lb
• Input HP 3/8 hp
• Gear Ratio 20:1
• Full Load Amps 1.3
• Insulation Class F4
• Thermal Protection None
• Max. Ambient Temp. 40 Degrees C
• Motor Type 3-Phase
• Shaft Dia. (Dimension U) 5/8 in
• Shaft Length (Dimension V) 1.5 in
• Service Factor 1
• Keyway Size Type 0.18 sq in x 1 in
• Bearings Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
• Lubrication Permanent Heavy Duty Gear Oil
• Finish Black High Gloss Enamel
• Housing Rolled Steel
• Gear Case Material Die Cast Aluminum
• Gears Hardened Steel Worm with Bronze Worm Wheel
• Gear Material Hardened Steel/Bronze
• Gear Type Worm/Worm Wheel
• Seals Single Lip, Spring Loaded, Heavy Duty
• Application Inverter Duty
• Standards UL/CSA

Manufacturer Details

• Manufacturer: Leeson
• Condensed Mfg Number: M114512900
• MPN: M1145129.00

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8501514020
• GDS Category Name: AC Gearmotors
• GDS Family Name: Gearmotors
• GDS Segment Name: Power Transmission
• UNSPSC: 20101617
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Screens and feeding equipment
• UNSPSC Commodity ID: 17
• UNSPSC Commodity Name: Gearmotors
• UNSPSC Family ID: 10
• UNSPSC Family Name: Mining and quarrying machinery and equipment
• UNSPSC Segment ID: 20
• UNSPSC Segment Name: Mining and Well Drilling Machinery and Accessories

Shipping Details

• Not For Sale In: HI AK PR
