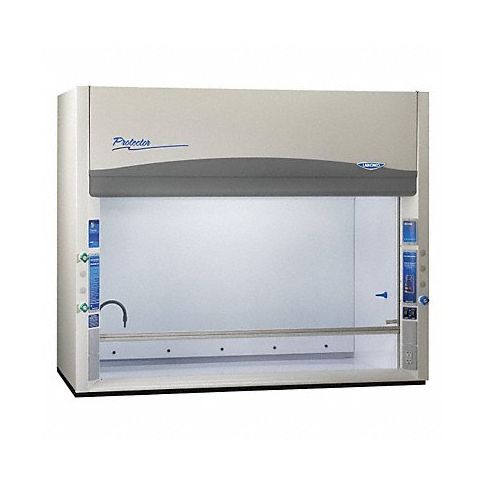

Protector Hood Benchtop 96inW 115V 60 Hz MPN:140810002

This Protector® PVC perchloric acid laboratory hood features a washdown system, integral work surface, and drainage trough that allows it to be thoroughly rinsed after each use to prevent the accumulation of potentially reactive perchloric salts. The interior and integral bottom with drainage trough are constructed of heat-welded Type I unplasticized PVC. The hood also features a tempered safety glass sash and powder-coated steel exterior. It is factory-prepared for up to eight service fixtures and four electrical duplexes. Features zero or two pre-plumbed service fixtures with forged brass valves; the lower right side with brass tubing and plastic serrated hose connector are designed for gas, and the lower left side with gooseneck faucet are for cold water. Components for converting gas fixture to air and vacuum are provided. Hoods have a 32.4 cm (12 3/4") O.D. exhaust collar. A black, enamel-coated hardboard surface supports the integral work surface. A built-in washdown system with internal piping and spray nozzles facilitates removal of hazardous chemical residue from hood interior and ductwork. T8 fluorescent lights give a bright, non-glare working surface. The 73.6 cm (29.1”) interior depth permits use of oversize apparatus. A dedicated, remotely located exhaust blower and a base cabinet or stand are required for operation (all sold separately).

Technical Specifications

• Item Fume Hood
• Mount Benchtop
• Number of Speeds 0
• Air Flow By-Pass
• Voltage 100-115V
• Hz 50/60
• Phase 1
• Amps AC 10
• Height 59 in
• Width 96 in
• Depth 37 3/4 in
• Length 37 3/4 in
• Finish Powder-Coated Steel
• Color Glacier White
• Includes (2) Pre-Plumbed Service Fixtures, (2) Gfci Electrical Duplex, Heat-Welded Type I Unplasticized Pvc Liner with Integral Work Surface, Black Enamel Hardboard Supporting Surface, Built-In Washdown System with Internal Piping and Spray Nozzles, Tempered Safety Glass Vertical-Rising Sash, Prewired T8 Fluorescent Lighting, ADA-Pliant Light and Blower Switches, By-Pass Block
• Series Protector
• Agency Compliance CFR 29, Part 1910; SEFA 1; NFPA 45; ASTM E84-09C; ASHRAE 110; ANSI Z9.5; SEFA 8, Cabinet Surface Finish Tests; CAN/CSA C22.2 No. 61010.1; UL 61010-1; UL 1805
• For Use With Perchloric Acid

Manufacturer Details

• Manufacturer: Labconco
• Condensed Mfg Number: 140810002
• MPN: 140810002

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9403200090
• GDS Category Name: Ducted Fume Hoods
• GDS Family Name: Lab Fume Hoods and Accessories
• GDS Segment Name: Lab Supplies
• UNSPSC: 41103502
• UNSPSC Class ID: 35
• UNSPSC Commodity Name: Laboratory enclosures and accessories
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Fume hoods or cupboards
• UNSPSC Family ID: 10
• UNSPSC Family Name: Laboratory and scientific equipment
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
