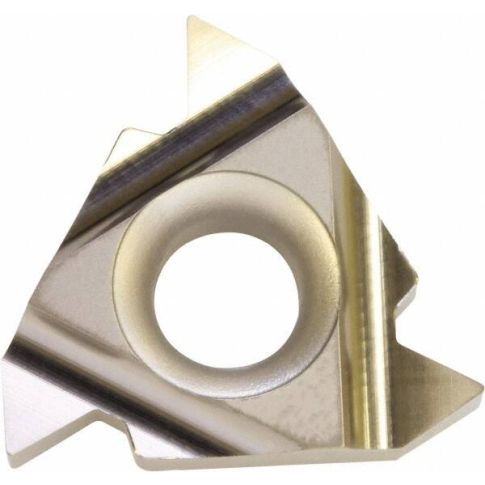

Threading Insert:22 Size, TNN Style, TC60 Grade, Cermet MPN:TSB01180
Threading Insert:22 Size, TNN Style, TC60 Grade, Cermet
Threading Insert:22 Size, TNN Style, TC60 Grade, Cermet Uncoated Finish, Series TNN
Product Information
- : TSB01180
- Ansi Code: TNN22IR55005TC60
- Coating Process: Uncoated
- Corner Radius (Decimal Inch): 0.0019
- Corner Radius (mm): 0.05
- Finish Coating: Uncoated
- Included Angle: 55
- Insert Hand: Right Hand
- Insert Material: Cermet
- Insert Size: 22
- Insert Style: TNN
- Internal Pitch: 28-14 TPI
- Iso Code: TNN22IR55005TC60
- Manufacturer Grade: TC60
- Series: TNN
- Standards: TNN22IR55005TC60
- Thickness (Decimal Inch - 4 Decimals): 0.1252
- Thickness (mm): 3.18
- Thread Standard: Partial Profile 55 Deg
- Thread Type: Internal
- Width of Cutting Tip (Decimal Inch): 0.2500
- Width of Cutting Tip (mm): 6.35
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: CH, Switzerland
- TAA Compliant: No
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.06
- Prohibited States: AK,HI,PR
Product info last updated on April 1, 2025 12:03am UTC
Category: Threading and Thread Mill Inserts
