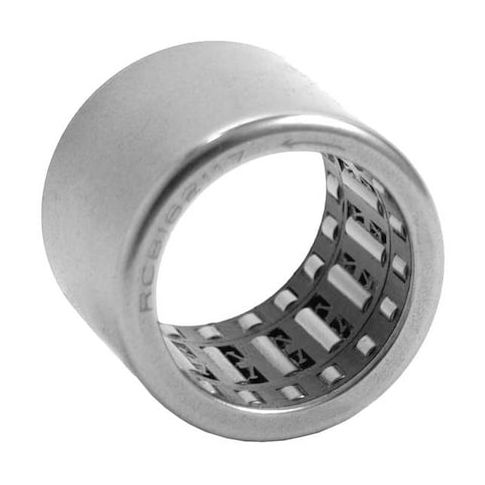

Needle Roller Brg, 10, 10mm Bore, Open MPN:FCB-10
Needle Roller Brg, 10, 10mm Bore, Open
The Koyo Needle Roller Bearing is a high-performance component designed for demanding applications. Its 10mm bore and open design make it ideal for use in precision instruments, medical devices, and other equipment where space is limited. With a maximum speed of 19,000 RPM and operating temperatures ranging from -30 to 120 degrees C, this bearing can handle high-speed and high-temperature applications with ease. Suitable for use in drawn cup roller clutches, the Koyo Needle Roller Bearing offers a reliable and efficient solution for applications requiring precise motion control and minimal friction.
Top product features:
- It has a thermoplastic cage for added durability and resistance to corrosion.
- It operates at a maximum speed of 19,000 RPM, making it suitable for high-speed applications.
- It can withstand temperatures ranging from -30°C to 120°C, allowing for use in a wide range of environments.
Top product applications:
- High-speed machinery such as spindles, gearboxes, and pumps
- Automotive applications including gearboxes, transmissions, and engine components
- Industrial equipment such as conveyor systems, printing presses, and packaging machinery
Needle Roller Bearing, Bearing Industry Number 10, Bearing Design FCB, Bore Diameter 10 mm, Cage Material Thermoplastic, Closure Open, Full Complement No, Lubricant Material Grease, Oil, Maximum Speed 19,000 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Needle Bearing Type Drawn Cup Roller Clutch, Number of Rows Three, Outside Diameter 16 mm, Overall Width 20 mm, Ring Material Alloy Steel, Roller Material Alloy Steel, Seal Type Not Applicable
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.63
- Package Width: 0.63
- Package Height: 0.79
- Package Weight: 0.03
Product info last updated on March 1, 2026 3:05am UTC
Category: Bearings, V-belts and Power Transmission Equipment
