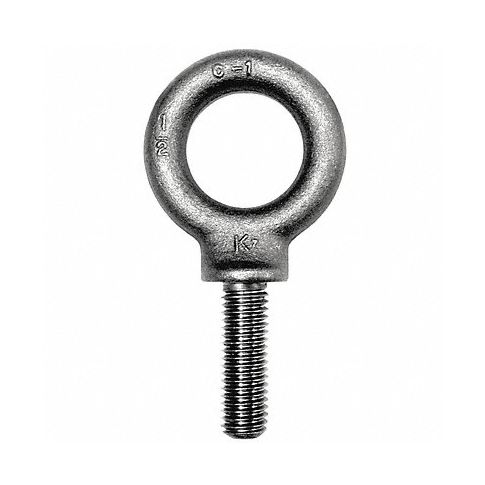

Machinery Eye Bolt Shank D 36 mm MPN:M36

For use in lifting applications, this eye bolt features a shoulder-type pattern to help ensure a safe fit. The shoulder must be firmly seated and flush against the mating surface to avoid reducing the rated capacity. It can be used in tapped holes, or in an untapped hole with a steel washer and nut.

Technical Specifications

• Item Eye Bolt
• System of Measurement Metric
• Eyebolt Type Lift with Shoulder
• Material Steel
• Finish Plain
• Thread Size M36 x 4.00
• Thread Length 89.0 mm
• Shank Dia. 36 mm
• Shank Length 89.0 mm
• Shoulder Dia. 53.85 to 57.15mm
• Shoulder Length 12.70 to 15.75mm
• Eye Inside Dia. 63 mm
• Eye Outside Dia. 131.8 mm
• Overall Length 246.9 mm
• Working Load Limit 8,970 kg

Manufacturer Details

• Manufacturer: Ken Forging
• Condensed Mfg Number: M36
• MPN: M36

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 7318152095
• GDS Category Name: Eyebolts
• GDS Family Name: Bolts
• GDS Segment Name: Fasteners
• UNSPSC: 31161610
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Bolts
• UNSPSC Commodity ID: 10
• UNSPSC Commodity Name: Eye bolts
• UNSPSC Family ID: 16
• UNSPSC Family Name: Hardware
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
