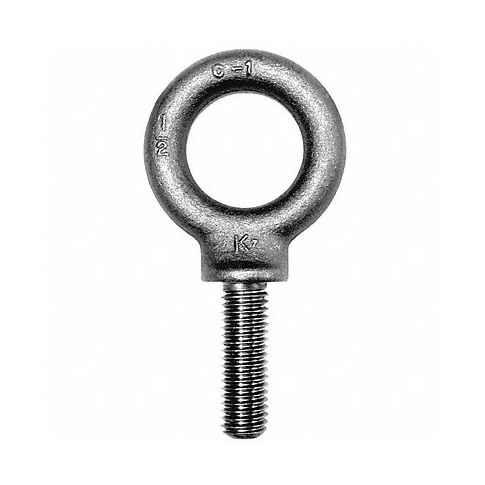

Machinery Eye Bolt Shank D 27 mm MPN:M27

For use in lifting applications, this eye bolt features a shoulder-type pattern to help ensure a safe fit. The shoulder must be firmly seated and flush against the mating surface to avoid reducing the rated capacity. It can be used in tapped holes, or in an untapped hole with a steel washer and nut.

Technical Specifications

• Item Eye Bolt
• System of Measurement Metric
• Eyebolt Type Lift with Shoulder
• Material Steel
• Finish Plain
• Thread Size M27 x 3.00
• Thread Length 70.0 mm
• Shank Dia. 27 mm
• Shank Length 70.0 mm
• Shoulder Dia. 42.93 to 45.97mm
• Shoulder Length 11.18 to 12.70mm
• Eye Inside Dia. 51 mm
• Eye Outside Dia. 103.0 mm
• Overall Length 196.9 mm
• Working Load Limit 5,200 kg

Manufacturer Details

• Manufacturer: Ken Forging
• Condensed Mfg Number: M27
• MPN: M27

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: Y
• CA Prop 65 Warning Msg Scenario: 7

Classification Details

• Harmonization Code: 7318152095
• GDS Category Name: Eyebolts
• GDS Family Name: Bolts
• GDS Segment Name: Fasteners
• UNSPSC: 31161610
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Bolts
• UNSPSC Commodity ID: 10
• UNSPSC Commodity Name: Eye bolts
• UNSPSC Family ID: 16
• UNSPSC Family Name: Hardware
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
