Machinery Eye Bolt Shank D 18 mm MPN:M18

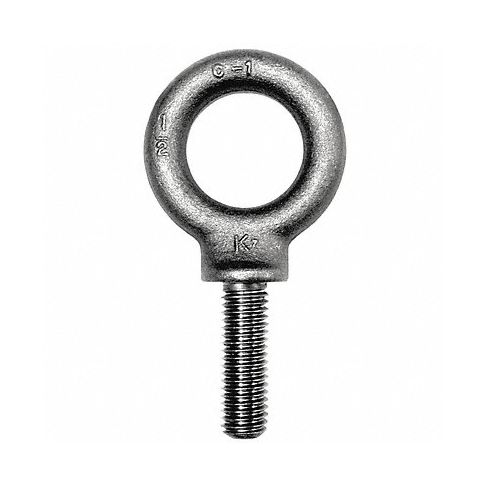

Machinery Eye Bolt Shank D 18 mm
The Machinery Eye Bolt Shank D 18 mm from Ken Forging is the perfect choice for any lifting application where a secure and durable connection is necessary. The shoulder-type pattern ensures a safe fit that can't be reduced by an improper installation. This eye bolt features a plain finish to minimize friction and avoid damage. Use it in tapped holes or untapped holes with steel washers and nuts for added security. With its high-quality steel construction, the Machinery Eye Bolt Shank D 18 mm can handle even the heaviest loads without breaking or bending.
Top product features:
- Lift with shoulder design ensures a safe fit
- Plain finish minimizes friction and damage
- Available in Metric System for easy measuring
Top product applications:
- Industrial Lifting and Rigging Systems
- Manufacturing Equipment Installation
- Heavy Machinery Assembly
For use in lifting applications, this eye bolt features a shoulder-type pattern to help ensure a safe fit. The shoulder must be firmly seated and flush against the mating surface to avoid reducing the rated capacity. It can be used in tapped holes, or in an untapped hole with a steel washer and nut.
Technical Specifications
- Item Eye Bolt
- System of Measurement Metric
- Eyebolt Type Lift with Shoulder
- Material Steel
- Finish Plain
- Thread Size M18 x 2.50
- Thread Length 51.0 mm
- Shank Dia. 18 mm
- Shank Length 51.0 mm
- Shoulder Dia. 28.45 to 31.75mm
- Shoulder Length 6.35 to 7.87mm
- Eye Inside Dia. 38 mm
- Eye Outside Dia. 71.5 mm
- Overall Length 139.7 mm
- Working Load Limit 2,140 kg
Manufacturer Details
- Manufacturer: Ken Forging
- Condensed Mfg Number: M18
- MPN: M18
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318152095
- GDS Category Name: Eyebolts
- GDS Family Name: Bolts
- GDS Segment Name: Fasteners
- UNSPSC: 31161610
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Bolts
- UNSPSC Commodity ID: 10
- UNSPSC Commodity Name: Eye bolts
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
