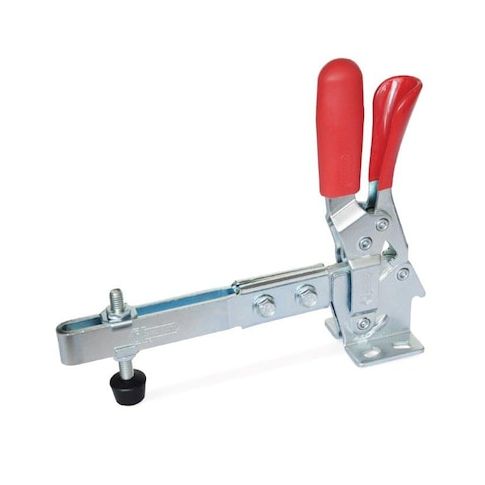

GN810.3-130-ULC Vertical Toggle Clamp MPN:810.3-130-ULC
GN810.3-130-ULC Vertical Toggle Clamp
The GN810.3-130-ULC Vertical Toggle Clamp is a reliable and secure fastening solution for various applications. Its safety function ensures a secure locking connection, preventing accidental unlocking due to vibrations or attempted loosening. The clamp can be easily opened and released with one-hand operation, and its temporary locking feature prevents inadvertent closing. Suitable for use in manufacturing, assembly, and repair settings where a secure and efficient clamping solution is required. Its compact design and ease of use make it an ideal choice for a range of industries, including aerospace, automotive, and medical device manufacturing.
Top product features:
- The toggle clamp has a safety function that ensures a secure locking connection, preventing inadvertent unlocking due to vibrations or accidental loosening.
- The clamp can be opened and released from the locked closed position with a one-hand operation by pressing the lever arm and safety hook lever arm together.
- The toggle clamp operates according to the toggle principle, where the lever and clamping bar move in the same direction.
Top product applications:
- Clamping of workpieces in a vertical position for machining or assembly
- Clamping of parts in a machine or fixture for testing or inspection
- Clamping of workpieces in a vertical position for holding or positioning during processing
GN 810.3 vertical acting toggle clamps have a safety function whereby, during closing, a spring loaded safety hook arm ensures a secure locking connection. It prevents the inadvertent unlocking of the clamp due to vibrations or an accidental attempt of loosening / opening of the clamp. To open and release the toggle clamp from the locked closed position, press the lever arm and safety hook lever arm together (one hand operation). The toggle clamp is then in the open position which can also be locked temporarily in that position via the hook of the safety hook lever arm to avoid inadvertent closing of the clamp. They work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in it's vertical position.
Additional Information
- Country of Origin: IT
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.86
Product info last updated on May 10, 2026 10:16am UTC
Category: Workholding and Machine Tool Accessories
