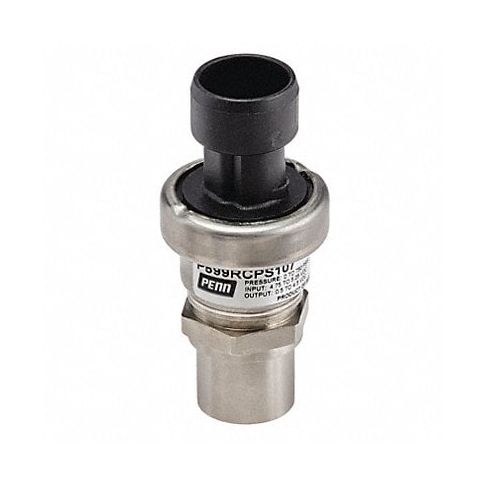

K4656 Pressure Transmitter 0 to 500 psi 1/8 MPN:P599RAPS105K
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-53CW31
K4656 Pressure Transmitter 0 to 500 psi 1/8
The K4656 is a compact, accurate and versatile pressure transmitter designed to measure and display gas or liquid pressure in the range of 0 to 500 psi, with an accuracy of +/- 1%. It features a threaded female process connection for easy installation and connection to tubing or pipe, while its compact design ensures it occupies minimal space even on tight installations. The K4656 also comes equipped with a Bourdon tube sensor assembly and pressure transducer circuitry that enables reliable measurements of differential, gauge or absolute pressures across various applications including hydraulics & pneumatics, HVAC/R systems, industrial process control and marine equipment.
This pressure transmitter produces an analog signal based on the sensed pressure. It is ideal for use in air conditioning and commercial refrigeration applications.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters 304L Stainless Steel
- Range Values - Transmitter 0 to 500
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-1.50%
- Electrical Connections - Transmitter Packard Connector with 6-1/2 ft Wiring Harness
- Power Required - Transmitters 4.8 to 5.2V DC
- Process Connection Size - Transmitter 1/8 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 0.5 to 4.5V DC
- Operating Temp. - Transmitter -40 Degrees to 212 Degrees F
- Wiring Entry - Transmitter None
- Calibration Certificate No
- Housing 304L Stainless Steel
- Loop Resistance Minimum Between Transducer Body and Any Wire: 100 megaohm @ 500V DC
- Max. Pressure (PSI) 500 psi
- For Use With Any Corrosive or Non-Corrosive Pressure Medium That is Compatible with 304L Stainless Steel, Including Water, Condensate, Carbon Dioxide, Glycol, Most Refrigerants Including Ammonia, Many Other Compatible Fluids and Gases
- Compatible With All Media Compatible with 304L Stainless Steel, Including Ammonia
- Includes 6 ft 6 in Wiring Harness
- Manufacturers Warranty Length 3 yr
Manufacturer Details
- Manufacturer: Johnson Controls
- Condensed Mfg Number: P599RAPS105K
- MPN: P599RAPS105K
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:37am UTC
Category: Pressure and Vacuum Measuring
