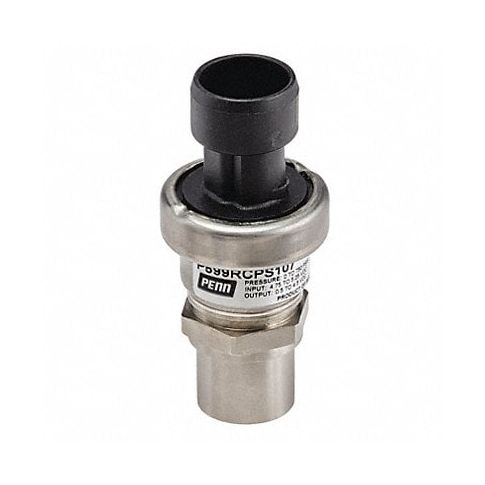

K4655 Pressure Transmitter -10 to 100 psi 1/8 MPN:P599RAPS100C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-53CW24
K4655 Pressure Transmitter -10 to 100 psi 1/8
K4655 pressure transmitter serves diverse industries including but not limited to research labs, pharmaceutical sectors where precision measurements are essential while monitoring gaseous or fluid systems. Due to its wide diaphragm-pressure range, this instrument suits various applications ranging from low 10 psi pressures to the relatively higher limit of 100 psi in laboratory and scientific equipment scenarios.
This pressure transmitter produces an analog signal based on the sensed pressure. It is ideal for use in air conditioning and commercial refrigeration applications.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters 304L Stainless Steel
- Range Values - Transmitter 0 to 100
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-1.50%
- Electrical Connections - Transmitter Packard Connector
- Power Required - Transmitters 4.8 to 5.2V DC
- Process Connection Size - Transmitter 1/8 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 0.5 to 4.5V DC
- Operating Temp. - Transmitter -40 Degrees to 212 Degrees F
- Wiring Entry - Transmitter None
- Calibration Certificate No
- Housing 304L Stainless Steel
- Loop Resistance Minimum Between Transducer Body and Any Wire: 100 megaohm @ 500V DC
- Max. Pressure (PSI) 100 psi
- For Use With Any Corrosive or Non-Corrosive Pressure Medium That is Compatible with 304L Stainless Steel, Including Water, Condensate, Carbon Dioxide, Glycol, Most Refrigerants Including Ammonia, Many Other Compatible Fluids and Gases
- Compatible With All Media Compatible with 304L Stainless Steel, Including Ammonia
- Manufacturers Warranty Length 3 yr
Manufacturer Details
- Manufacturer: Johnson Controls
- Condensed Mfg Number: P599RAPS100C
- MPN: P599RAPS100C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:44am UTC
Category: Pressure and Vacuum Measuring
