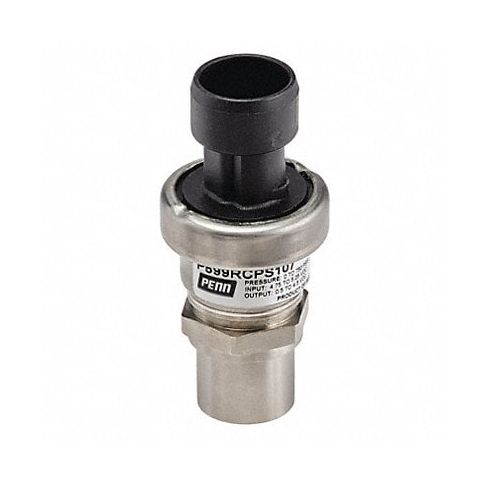

Pressure Transmitter 0 to 750 psi 1/8 in MPN:P599AAPS107K
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-53CW17
Pressure Transmitter 0 to 750 psi 1/8 in
Our Premium Quality Pressure Transmitter offers precise pressure readings between 0-750psi with an accuracy of +/-0.25% making it ideal for applications where precision is critical, be it in HVAC systems or chemical plants - this instrument delivers accurate real-time data so users can make informed decisions quickly, even from a distance thanks to its Modbus or 4-20mA output options ensuring compatibility with most control systems today. Equipped with an all-stainless steel construction and temperature compensated, it safeguards against any unwanted external influence while maintaining durability over time without compromising on accuracy - the perfect solution for professionals demanding dependable readings each time they need them!
This pressure transmitter produces an analog signal based on the sensed pressure. It is ideal for use in air conditioning and commercial refrigeration applications.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters 304L Stainless Steel
- Range Values - Transmitter 0 to 750
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-1.50%
- Electrical Connections - Transmitter Packard Connector with 6-1/2 ft Wiring Harness
- Power Required - Transmitters 9 to 32V DC
- Process Connection Size - Transmitter 1/8 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 212 Degrees F
- Wiring Entry - Transmitter None
- Calibration Certificate No
- Housing 304L Stainless Steel
- Loop Resistance Minimum Between Transducer Body and Any Wire: 100 megaohm @ 500V DC
- Max. Pressure (PSI) 750 psi
- For Use With Any Corrosive or Non-Corrosive Pressure Medium That is Compatible with 304L Stainless Steel, Including Water, Condensate, Carbon Dioxide, Glycol, Most Refrigerants Including Ammonia, Many Other Compatible Fluids and Gases
- Compatible With All Media Compatible with 304L Stainless Steel, Including Ammonia
- Includes 6 ft 6 in Wiring Harness
- Manufacturers Warranty Length 3 yr
Manufacturer Details
- Manufacturer: Johnson Controls
- Condensed Mfg Number: P599AAPS107K
- MPN: P599AAPS107K
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:36am UTC
Category: Pressure and Vacuum Measuring
