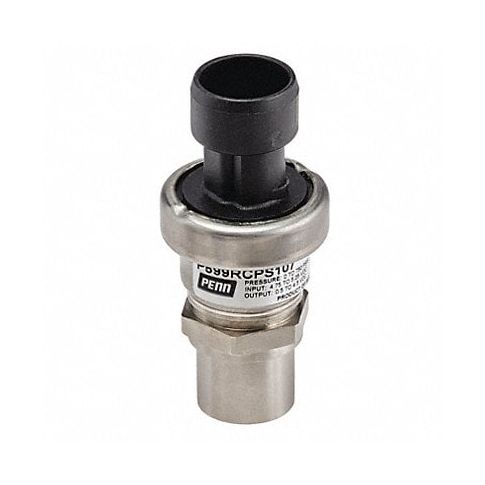

Pressure Transmitter 0 to 500 psi 1/8 in MPN:P599AAPS105C
Introducing our Pressure Transmitter 0 to 500 psi 1/8 in from Johnson Controls - the ideal solution for precise pressure monitoring in air conditioning and commercial refrigeration applications! This versatile transmitter produces an analog signal based on sensed pressure, allowing for real-time monitoring and control of your system. With its wide range of 0 to 500 psi and accuracy of +/-1.50%, you can rely on this transmitter to provide precise pressure readings in even the most demanding environments. Its stainless steel wetted materials ensure durability and resistance to corrosion, while its compact size allows for easy installation in tight spaces. Upgrade your system today with our Pressure Transmitter 0 to 500 psi 1/8 in from Johnson Controls!
Top product features:
- Wide range of 0 to 500 psi for precise pressure monitoring
- Compact size for easy installation in tight spaces
- Accuracy of +/-1.50% for reliable pressure readings
Top product applications:
- Air conditioning systems for monitoring and controlling pressure levels
- Commercial refrigeration systems to maintain optimal temperature and pressure conditions
- Industrial processes requiring precise pressure control
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters 304L Stainless Steel
- Range Values - Transmitter 0 to 500
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-1.50%
- Electrical Connections - Transmitter Packard Connector
- Power Required - Transmitters 9 to 32V DC
- Process Connection Size - Transmitter 1/8 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 212 Degrees F
- Wiring Entry - Transmitter None
- Calibration Certificate No
- Housing 304L Stainless Steel
- Loop Resistance Minimum Between Transducer Body and Any Wire: 100 megaohm @ 500V DC
- Max. Pressure (PSI) 500 psi
- For Use With Any Corrosive or Non-Corrosive Pressure Medium That is Compatible with 304L Stainless Steel, Including Water, Condensate, Carbon Dioxide, Glycol, Most Refrigerants Including Ammonia, Many Other Compatible Fluids and Gases
- Compatible With All Media Compatible with 304L Stainless Steel, Including Ammonia
- Manufacturers Warranty Length 3 yr
Manufacturer Details
- Manufacturer: Johnson Controls
- Condensed Mfg Number: P599AAPS105C
- MPN: P599AAPS105C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
