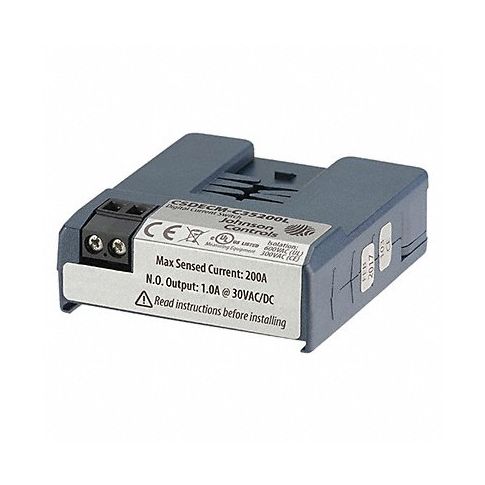

Current Sensing Relay Self Powered MPN:CSDECM-C35200L1
Free Shipping
In Stock
Experience precision control and advanced protection for your electrical systems with the Self-Powered Current Sensing Relay from Johnson Controls! This versatile split core current sensor relay is ideal for a wide range of industrial applications, helping you monitor the flow of electricity in circuits to detect issues such as locked rotors, current loss, open heaters, or lamp loads. With its self-powered design, you'll never have to worry about additional wiring or power sources - simply plug it in and start monitoring. The relay features an easy-to-use surface mount installation, making setup quick and convenient. Its AC and DC contact ratings allow for maximum flexibility, while the 1 A rating ensures precise performance. Say goodbye to costly downtime and improve the safety and efficiency of your operations with the Self-Powered Current Sensing Relay from Johnson Controls!
Top product features:
- Self-powered design eliminates need for additional wiring or power sources
- Split core current sensor monitors the flow of electricity in circuits
- AC and DC contact ratings provide flexibility and precision performance
Top product applications:
- Industrial settings to detect current loss or lock rotors in machines and equipment
- HVAC systems to monitor heating and cooling loads
- Lighting systems to detect open lamps or lamp load variations
Technical Specifications
- Item - Relay Current Sensing Relay
- Input or Control Voltage Self Powered
- AC Contact Rating - Relay 1.00A @ 30V
- DC Contact Rating - Relay 1.00A @ 30V
- Mounting - Relay Surface
- Contact Form - Relay SPST-NO
- Sensing Amp Range 0.35 to 200.00A
- Trip Point Fixed 0.35A
- Trip Delay None
- Core Type - Relay Split
- Type of Output Relay
- Status Indicator None
- Electrical Connection Terminal Strip
- Body Height - Relay 2.5 in
- Body Width - Relay 0.57 in
- Body Depth - Relay 2.23 in
- Overall Height - Relay 2.5 in
- Sensor Opening 0.75 in
- Max. Inrush Current 200 A
Manufacturer Details
- Manufacturer: Johnson Controls
- Condensed Mfg Number: CSDECMC35200L1
- MPN: CSDECM-C35200L1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Current Sensor Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121520
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Overload relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
