Mech Tstat Heat or Cool Steel 110/30F MPN:A19EAF-2C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-38Y074

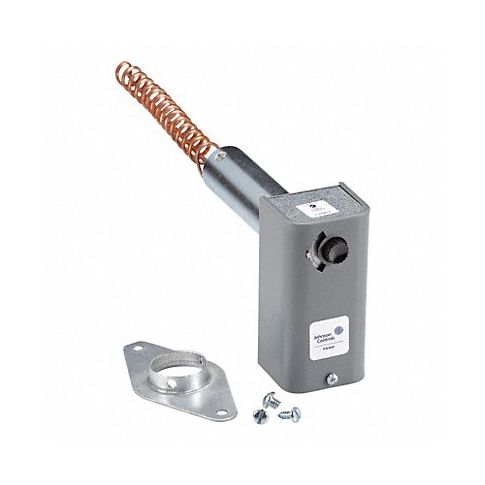

Mech Tstat Heat or Cool Steel 110/30F
Keep your HVAC system running smoothly with our Line Volt Mechanical Tstat Thermostat from Johnson Controls! This reliable thermostat features SPDT switch type for easy installation and comes in a temperature range of 30 Degrees to 110 Degrees F, ensuring that your heating or cooling system operates at optimal efficiency. With a voltage range of 24 to 277V AC and full load amps of 6A, this thermostat is perfect for a wide range of applications. Say goodbye to fluctuating temperatures and enjoy consistent comfort in your home or office with our Line Volt Mechanical Tstat Thermostat today!
Top product features:
- Mechanical Tstat Thermostat for heating and cooling
- SPDT switch type for easy installation
- Control Range of 30 to 110 degrees F
Top product applications:
- Heating and Cooling systems for commercial and residential properties
- Control air conditioning in homes and offices
- Regulate temperature in warehouses and industrial settings
Buy Johnson Controls item #A19EAF-2C from our huge selection of HVAC Controls to show your support for our ♻ Socially Responsible Veteran-Owned Business.
Technical Specifications
- Item Line Volt Mechanical Tstat
- Thermostat Switch Type SPDT
- Thermostat Control Range 30 Degrees to 110 Degrees F
- Thermostat Voltage 24 to 277V AC
- Full Load Amps @ 120VAC 6 A
- Full Load Amps @ 240VAC 3 A
- Thermostat Programmable No
- Remote Sensing Capability No
- Thermostat Heating/Cooling Heating/Cooling
- Thermostat Item Line Voltage Mechanical Thermostat
- Remote Sensing Bulb Included No
- Switch Action Open/Close on Rise
- Number of Switches 1
- Differential 2 Degrees F
- Height 4 3/8 in
- Width 2 1/8 in
- Depth 1 13/16 in
- Temp. Sensitivity +/-2 Degrees F
- Sensor Type Coil
- Capillary Length 6 3/4 in
- Color Gray
- Enclosure Type Galvanized/Steel
- Inductive Amps @ 120V 6 A
- Inductive Amps @ 208V 3.4 A
- Inductive Amps @ 240V 3 A
- Locked Rotor Amps @ 120V 36 A
- Locked Rotor Amps @ 240V 18 A
- Contact Rating Resistive @ 120V 10 A
- Resistive Amps @ 208VAC 10 A
- Contact Rating Resistive @ 240V 10 A
- Contact Rating Resistive @ 277V 10 A
- Pilot Duty Contacts (VA) 125 VA
- Mounting Type Flange Mount
- Standards UL E6688; CSA LR948/4813 02
Manufacturer Details
- Manufacturer: Johnson Controls
- Condensed Mfg Number: A19EAF2C
- MPN: A19EAF-2C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Air Coil and Bi-Metal Sensor Temperature Controls
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 41112209
- UNSPSC Class ID: 22
- UNSPSC Commodity Name: Temperature and heat measuring instruments
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Thermostats
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00DAI2V1A, B008HOX9S6, B008FM95GK
Product info last updated on June 17, 2024 2:18pm UTC Category: HVAC Controls and Thermostats
