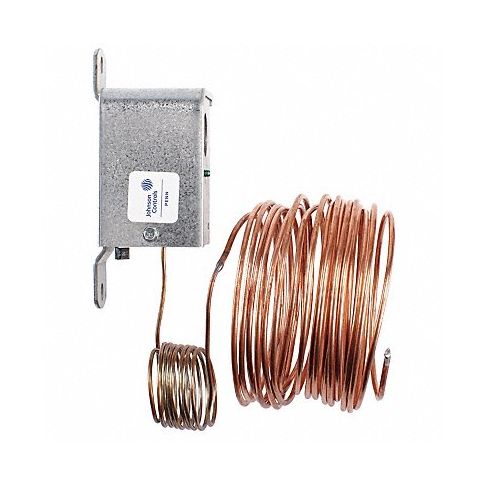

Remote-Bulb Control H/C 20ft Bulb Length MPN:A11B-1C

Technical Specifications

• Item Line Volt Mechanical Tstat
• Thermostat Switch Type SPST
• Thermostat Control Range 35 Degrees to 45 Degrees F
• Thermostat Voltage 24 to 277V AC
• Full Load Amps @ 120VAC 15 A
• Full Load Amps @ 240VAC 8 A
• Thermostat Programmable No
• Remote Sensing Capability Yes
• Thermostat Heating/Cooling Cooling
• Thermostat Item Line Voltage Mechanical Thermostat
• Remote Sensing Bulb Included Yes
• Switch Action Close On Rise
• Number of Switches 1
• Differential 8 Degrees F
• Height 3 1/8 in
• Width 2 1/8 in
• Depth 2 3/8 in
• Sensor Type Capillary
• Sensing Bulb Dia. 1/8 in
• Sensing Bulb Length 4 ft
• Capillary Length 240 in
• Color Galvanized
• Enclosure Type Galvanized/Steel
• Inductive Amps @ 120V 16 A
• Inductive Amps @ 208V 9.2 A
• Inductive Amps @ 240V 8 A
• Locked Rotor Amps @ 120V 96 A
• Locked Rotor Amps @ 240V 48 A
• Contact Rating Resistive @ 120V 16 A
• Resistive Amps @ 208VAC 9.6 A
• Contact Rating Resistive @ 240V 8 A
• Contact Rating Resistive @ 277V 6.93 A
• Pilot Duty Contacts (VA) 125 VA
• Mounting Type Flat Surface
• Includes Screws and Mounting Hardware
• Standards UL SA516; CSA LR948/361-E-0.2

Manufacturer Details

• Manufacturer: Johnson Controls
• Condensed Mfg Number: A11B1C
• MPN: A11B-1C

Label Details

• Hazardous Material: Y
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Remote-Bulb Sensor Temperature Controls
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 41112209
• UNSPSC Class ID: 22
• UNSPSC Commodity Name: Temperature and heat measuring instruments
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Thermostats
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
