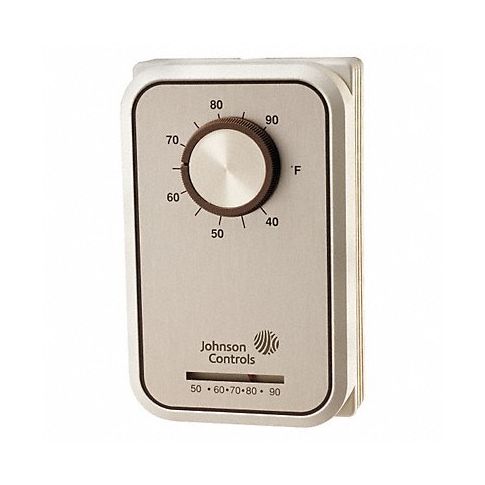

Line Volt NP Analog Tstat 1H White SPST MPN:T26A-14C

Technical Specifications

• Item Line Volt Mechanical Tstat
• Thermostat Switch Type SPST
• Thermostat Control Range 40 Degrees to 90 Degrees F
• Thermostat Voltage 24 to 277V AC
• Full Load Amps @ 120VAC 15 A
• Full Load Amps @ 240VAC 3 A
• Thermostat Programmable No
• Remote Sensing Capability No
• Thermostat Heating/Cooling Heating
• Thermostat Item Line Voltage Mechanical Thermostat
• Remote Sensing Bulb Included No
• Switch Action Open/Close on Rise and Open/Close on Fall
• Number of Switches 1
• Differential 0.7 Degrees F
• Height 5 in
• Width 3 in
• Depth 3 in
• Sensor Type Bi-Metal
• Color Brown
• Enclosure Type NEMA 1
• Inductive Amps @ 120V 10 A
• Inductive Amps @ 208V 10 A
• Inductive Amps @ 240V 10 A
• Locked Rotor Amps @ 120V 36 A
• Locked Rotor Amps @ 240V 18 A
• Pilot Duty Contacts (VA) 125 VA
• Mounting Location Wall
• Standards UL

Manufacturer Details

• Manufacturer: Johnson Controls
• Condensed Mfg Number: T26A14C
• MPN: T26A-14C

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Line Voltage Non-Programmable Analog Thermostats
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 41112209
• UNSPSC Class ID: 22
• UNSPSC Commodity Name: Temperature and heat measuring instruments
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Thermostats
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
