Current Sensing Relay Split Core 24VAC MPN:CSDSC-C50100L1
SKU
226-CXG-481H58

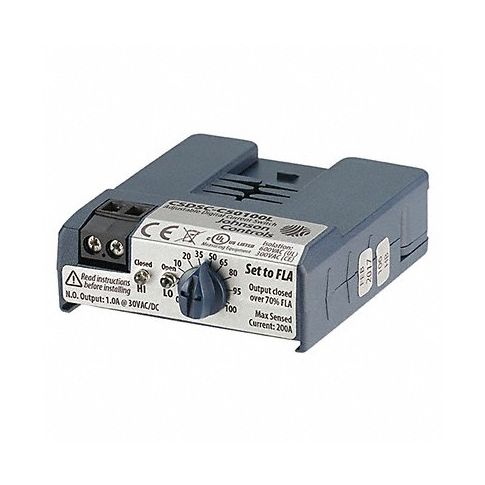

Current Sensing Relay Split Core 24VAC
Introducing the Johnson Controls Split Core Current Sensing Relay, designed to monitor electrical circuits in your home or business. With a 24VAC input voltage, this versatile relay can detect locked rotors, current loss, open heaters, or lamp loads to help keep your equipment running smoothly. With a maximum AC and DC contact rating of 1.00A @ 30V, this relay is suitable for a wide range of applications. Its surface mounting design ensures easy installation without taking up valuable space. Invest in the Johnson Controls Split Core Current Sensing Relay today and enjoy the peace of mind that comes with knowing your electrical systems are protected!
Top product features:
- Split core design for easy installation
- Current sensing function to detect issues in electrical circuits
- Surface mounting option for easy setup
Top product applications:
- Monitoring electrical circuits for potential issues such as locked rotors, current loss, open heaters, or lamp loads
- Used in industrial settings to detect and alert about overloads and faults
- Can be integrated into home automation systems for remote monitoring of electrical devices
This split core current sensor relay can help monitor the current of circuits to help in detecting locked rotors, current loss, open heaters, or lamp loads.
Technical Specifications
- Item - Relay Current Sensing Relay
- Input or Control Voltage 24V AC
- AC Contact Rating - Relay 1.00A @ 30V
- DC Contact Rating - Relay 1.00A @ 30V
- Mounting - Relay Surface
- Contact Form - Relay SPST-NO
- Sensing Amp Range 0.50 to 100.00A
- Trip Point Adjustable 0.50 to 100.00A
- Trip Delay None
- Core Type - Relay Split
- Type of Output Relay
- Status Indicator LED
- Electrical Connection Terminal Strip
- Body Height - Relay 2.5 in
- Body Width - Relay 0.57 in
- Body Depth - Relay 2.23 in
- Overall Height - Relay 2.5 in
- Sensor Opening 0.75 in
- Max. Inrush Current 100 A
