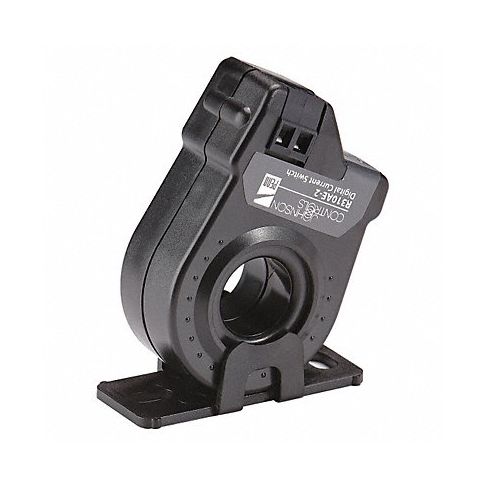

Current Sensing Relay 0.75A 120/240VAC MPN:R310AE-2C

Designed to be used in any application where current detection is required, this relay detects AC flow in a single circuit without being connected to that circuit. It's molded in a high dielectric material that permits mounting inside a starter or contactor.

Technical Specifications

• Item - Relay Current Sensing Relay
• Input or Control Voltage 120/240V AC
• AC Contact Rating - Relay 0.50A @ 250V
• DC Contact Rating - Relay 0.50A @ 250V
• Mounting - Relay Surface
• Contact Form - Relay SPST-NO
• Sensing Amp Range 0.75 to 200.00A
• Trip Point Fixed 0.75A
• Trip Delay None
• Core Type - Relay Solid
• Type of Output Solid State
• Status Indicator None
• Electrical Connection Terminal Strip
• Body Height - Relay 2.34 in
• Body Width - Relay 1.85 in
• Body Depth - Relay 0.88 in
• Overall Height - Relay 2.34 in
• Sensor Opening 0.71 in
• Max. Inrush Current 200 A

Manufacturer Details

• Manufacturer: Johnson Controls
• Condensed Mfg Number: R310AE2C
• MPN: R310AE-2C

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Current Sensor Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121520
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 20
• UNSPSC Commodity Name: Overload relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
